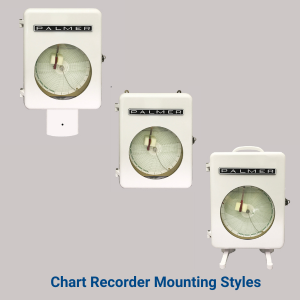

Palmer Circular Chart Recorders are available in five different case mounting styles. Select the one most appropriate for your application.

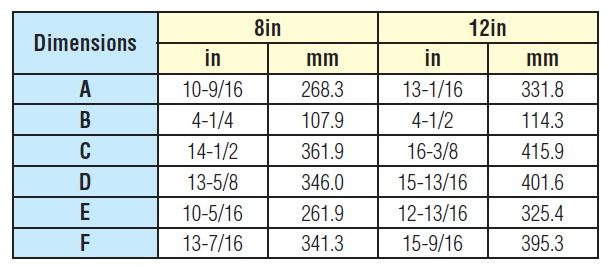

Reference the above dimensions for each mounting style sketch.

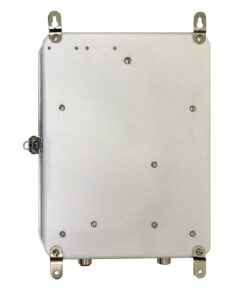

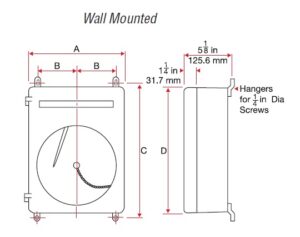

Wall Mount
Wall mount recorders come with hangers attached, allowing you to mount your recorder with 1/4 inch diameter screws, with the back of the box on the wall. The capillary and/or pressure connection will be on the bottom of the case as standard. Standard door closure is via pull latch with hasp.

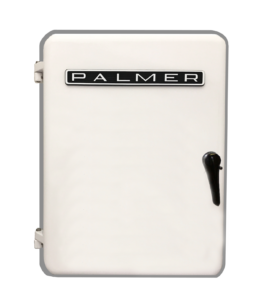

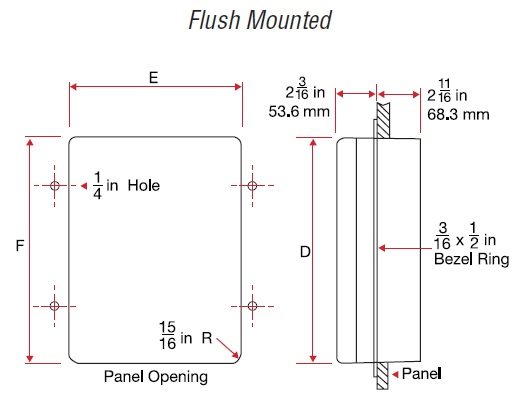

Flush Mount
Flush mount recorders come with a black lever handle standard to make opening the door easy. A bezel ring allows the recorder to sit flush with the wall. The capillary and/or pressure connection will be on the back of the case as standard. This mounting style is not available for Pelican® case models.

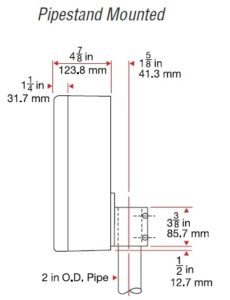

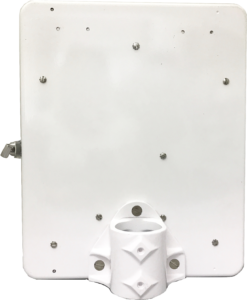

Pipestand Mount
The capillary and/or pressure connection will be on the bottom of the case as standard. Mount fits 2 inch O.D. pipe. Standard door closure is via pull latch with hasp.

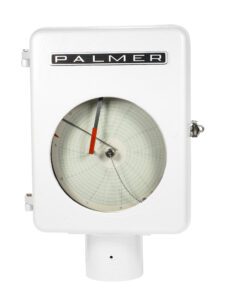

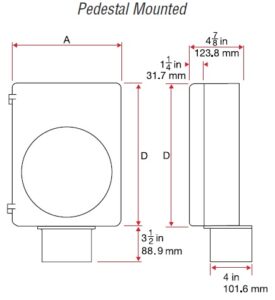

Pedestal Mount
Pedestal Mount has a 3 inch slip-on connection and is available only with pressure systems. The capillary and/or pressure connection will be on the back of the case as standard. *Pedestal mounts are not compatible with temperature systems.
Standard door closure is via pull latch with hasp. This mounting style is not available for Pelican® case models.

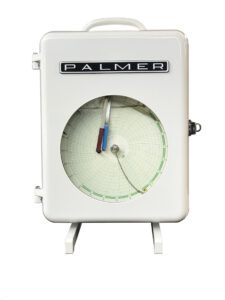

Portable
Our most popular mounting style. The capillary and/or pressure connection will be on the back of the case as standard. Standard door closure is via pull latch with hasp.
