Self-Adhesive Surface Probe

Description

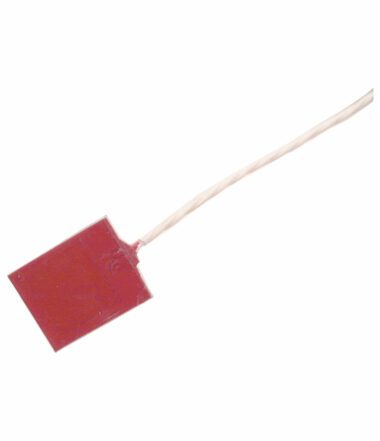

Self-adhesive, polymer encased sensor in a 1.25 inch by 1 inch rectangular, pressure sensitive adhesive patch.  No handle; 10 feet of Teflon® coated cable.  Used for monitoring environmental tests, curing cycles, and oven processing.

Utilizes platinum RTD for long term stability and repeatability and use as a primary standard.

Available with connectors to work with our TM, TMA, 392, and 392HP series meters.

Specifications

Style

Surface

Sensor

Platinum RTD, Polymer encased

Available Models

TM: M8x1, 4-pin connector (for use with TM612 or TM630)
TMA: Lemo 4-pin connector (for use with TM612A or TM630A)
392AHP: 4-Pin Din connector - Female (for use with 392HP & 392AHP Series)
392A Series: 3-conductor, 0.176 inch “bantam” phone plug, copper alloy (for use with 392A Series)

Handle

No

For Use With

Environmental testing, curing cycles, and oven processing

Temperature Limit

350°F

Response Time

1 second response measured in boiling water

Dimensions

1.25 inches x 1 inch

Cable Length

10 feet

Cable Material

Teflon® coated cable
