Pelican® Case Pressure Circular Chart Recorders, 8 inch and 12 inch

Circular Chart Recorders are a configurable product. Please review our Order Guide and choose the pressure ranges, chart rotation speed, and other specifications needed to build and quote a complete recorder.

SPEC SHEET

MANUAL

ORDER GUIDE

SKU: 1P_1R_Recorder Categories: , ,

Description

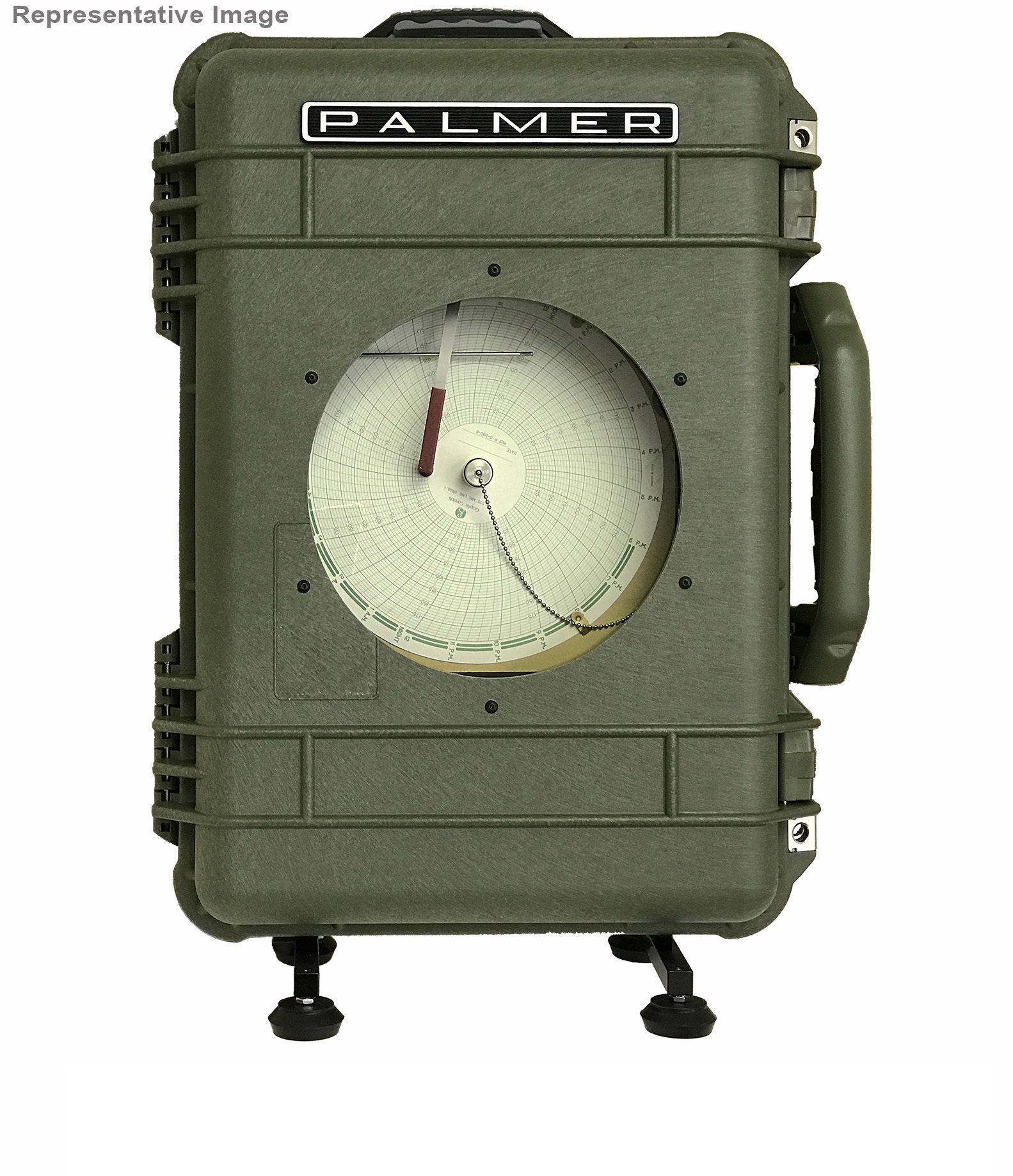

Palmer Circular Chart Recorders are durable, fully mechanical units with a low maintenance design.  Housed in a Pelican® brand case and available in 8 inch and 12 inch chart sizes, these recorders are lightweight and easy to carry.  All Pelican® brand case circular chart recorders come with a Plexiglass window standard.

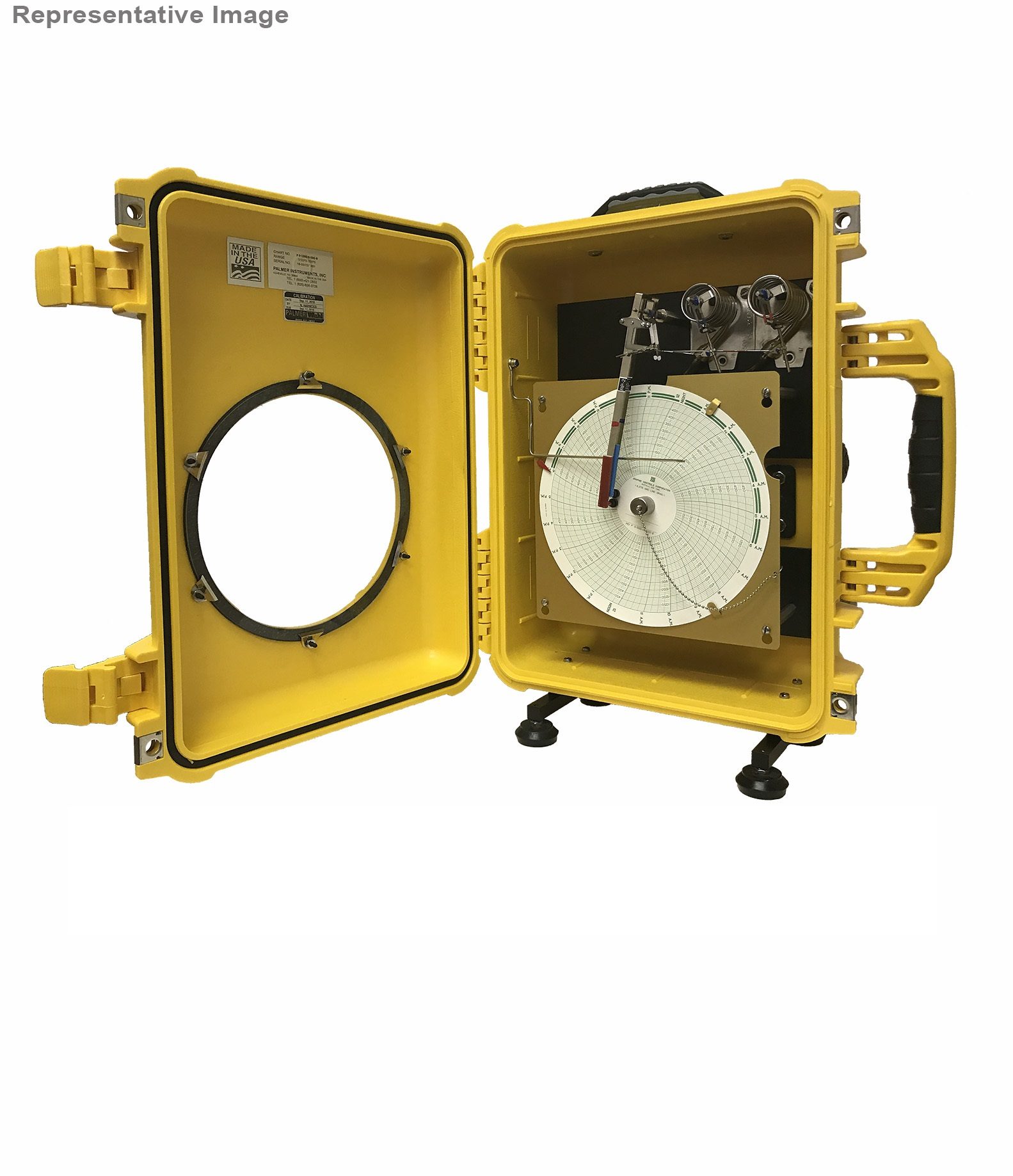

Pelican® brand case circular chart recorders are crush resistant and dust-proof with double throw latches and water tight O-ring seal for protection in harsh environments.  The automatic pressure equalization valve releases built-up pressure and prevents moisture intrusion.  Ideal for transporting to the job site, Pelican® brand cases feature rubber over-molded handle for comfort, open cell core with solid wall design for strength, with heavy duty deflector ribs to protect against shock and impact.  Exterior stainless steel hardware and padlock protectors.  Internals are all stainless steel - corrosion resistant with micro-adjustable wire linkage.

Available with up to 3 pens, all pressure elements are made of 316SS and are field replaceable.  Choose from our three available Pelican® case mounting styles: portable, pipestand, or wall mount.

Low pressure elements for ranges 30 PSI and below are 316SS bellows diaphragm, tubing, and fittings.  Standard pressure elements for ranges over 30 to 10,000 PSI are made from 316SS helical coil with stainless steel fittings and tubing, and have 1/4 inch NPT fitting.  High pressure elements for ranges above 10,000 PSI are made from 316SS bourdon tube with autoclave fitting.  High pressure elements are calibrated on the rise only.

Choose from a variety of recorder drives to configure your recorder.  Our most popular option is the PC-11 C-Cell alkaline battery powered, eleven speed motor with speeds of 60 minutes, 96 minutes, 12 hours, 24 hours, 48 hours, 7 days, 8 days, 14 days, 16 days, 31 days or 32 days.  Our PC-12 C-Cell battery powered, twelve speed motor offers speeds of 30 minutes, 60 minutes, 2 hours, 4 hours, 6 hours, 8 hours, 12 hours, 24 hours, 3 days, 4 days, and 7 days.  Spring wound drives with standard rotation of 24 hours / 7 days are available, with other spring wound rotations available with special order.

Palmer Chart recorders use disposable fine point felt tipped pens in red, green, and blue.  Black and purple pens are available.  We offer standard and specialty charts to meet the needs of your application.

View our Chart Recorder Order Guide to see details of all the available options.

All Palmer Circular Chart Recorders are built to order in our Asheville, NC factory.



Specifications

Arc Line

6-3/8 inch
Case

Pelican® brand case
Available Case Colors

Black (Standard)
Orange
Yellow
Number of Pressure Systems

1
2
3
Inches of Mercury Pressure Ranges

0 to 10 Hg
0 to 30 Hg
0 to 50 Hg
Inches of Water Pressure Ranges

0 to 10 in H2O
0 to 15 in H2O
0 to 20 in H2O
0 to 25 in H2O
0 to 30 in H2O
0 to 40 in H2O
0 to 50 in H2O
0 to 60 in H2O
0 to 100 in H2O
Ounces per Square Inch Pressure Ranges

0 to 10 oz/sq. in.
0 to 15 oz/sq. in.
0 to 20 oz/sq. in.
0 to 25 oz/sq. in.
0 to 30 oz/sq. in.
0 to 50 oz/sq. in.
Kilopascal Pressure Ranges

0 to 5 kPa
0 to 20 kPa
0 to 80 kPa
0 to 100 kPa
0 to 500 kPa
0 to 800 kPa
0 to 1,000 kPa
0 to 2,000 kPa
0 to 5,000 kPa
Bar Pressure Ranges

0 to 6 Bar
0 to 10 Bar
0 to 16 Bar
0 to 25 Bar
0 to 40 Bar
0 to 50 Bar
0 to 60 Bar
0 to 100 Bar
0 to 160 Bar
0 to 200 Bar
0 to 250 Bar
0 to 300 Bar
0 to 400 Bar
0 to 500 Bar
0 to 600 Bar
0 to 1,000 Bar
0 to 1,200 Bar
0 to 1,600 Bar
0 to 2,000 Bar
PSI Pressure Ranges

0 to 1 PSI
0 to 3 PSI
0 to 5 PSI
0 to 6 PSI
0 to 8 PSI
0 to 10 PSI
0 to 15 PSI
0 to 20 PSI
0 to 25 PSI
0 to 30 PSI
0 to 35 PSI
0 to 45 PSI
0 to 50 PSI
0 to 60 PSI
0 to 75 PSI
0 to 100 PSI
0 to 120 PSI
0 to 150 PSI
0 to 200 PSI
0 to 250 PSI
0 to 300 PSI
0 to 350 PSI
0 to 400 PSI
0 to 500 PSI
0 to 600 PSI
0 to 750 PSI
0 to 800 PSI
0 to 1,000 PSI
0 to 1,500 PSI
0 to 2,000 PSI
0 to 2,500 PSI
0 to 3,000 PSI
0 to 4,000 PSI
0 to 5,000 PSI
0 to 6,000 PSI
0 to 8,000 PSI
0 to 10,000 PSI
0 to 15,000 PSI
0 to 20,000 PSI
0 to 30,000 PSI
3 to 15 PSI
Battery Powered Recorder Drives

PC-11, eleven speed motor with speeds at: 60 minutes, 96 minutes, 12 hours, 24 hours, 48 hours, 7 days, 8 days, 14 days, 16 days, 31 days, or 32 days with OFF option.

PC-12, twelve speed motor with speeds at: 30 minutes, 60 minutes, 2 hours, 4 hours, 6 hours, 8 hours, 12 hours, 24 hours, 3 days, 4 days, and 7 days, with NO OFF option.
Spring Wound Recorder Drives

Standard Rotation: 24 hours / 7 days
All other rotations are special order
Electric Recorder Drives

110/120V, 60 Hz, 7 Day
110/120V, 60 Hz, 12 Hour
Mounting Options

Wall Mounted
Portable
Pipestand Mounted
Door Style

Door with Plexiglass Window (Standard)

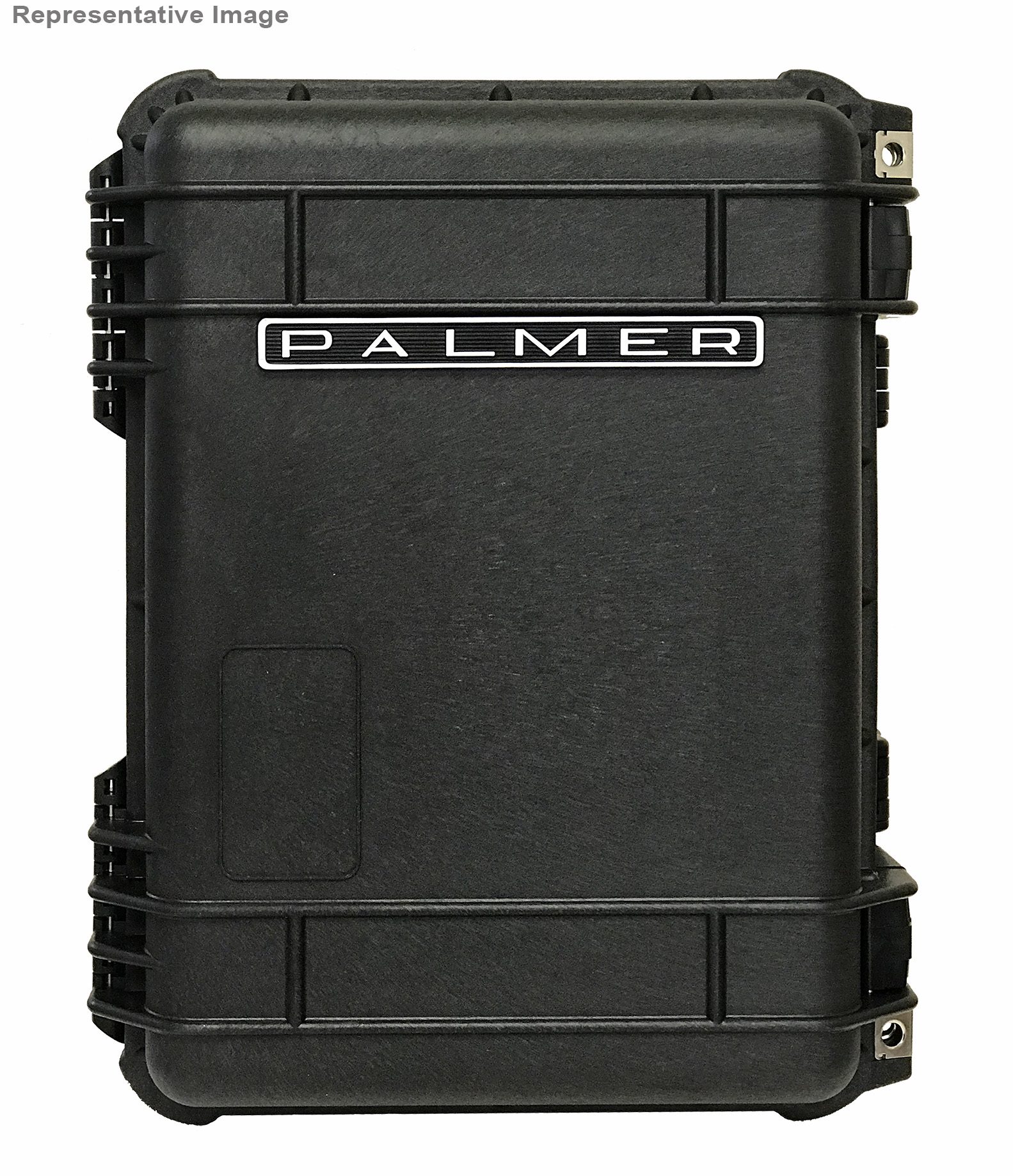

Solid Door
Door with Safety Glass Window* Required with pressure ranges of 15,000 psi or higher
Process Connection

Standard: 1/4 inch NPT for pressure ranges at or below 10,000 PSI.
Optional: 1/2 inch NPT.
Autoclave fitting: For 0 to 15,000 PSI, 0 to 20,000 PSI, and 0 to 30,000 PSI ranges; optional for 0 to 10,000 PSI.
Pen Colors

Standard: Red, Blue, Green
Optional: Black, Purple
Accuracy

± 1/2 chart graduation for pressure measurement
8 inch Case Dimensions (Case Only)

16.44 in. x 13.00 in. x 6.82 in. (41.8 x 33 x 17.3 cm). Does not include feet or pedestal.
12 inch Case Dimensions (Case Only)

19.78 in. x 15.77 in. x 7.41 in. (50.2 x 40.1 x 18.8 cm). Does not include feet or pedestal.
