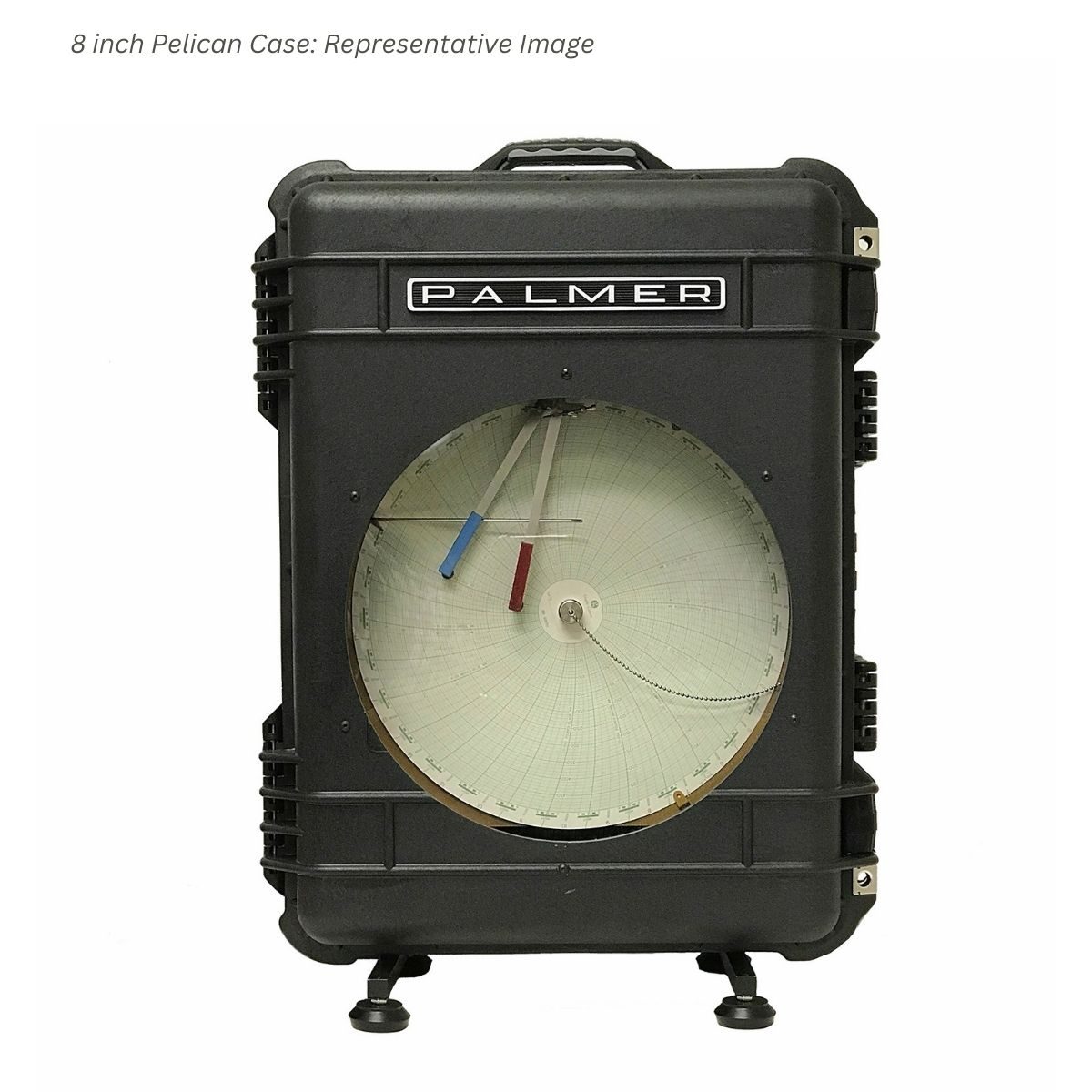

8 inch Pelican Case Recorder, Portable

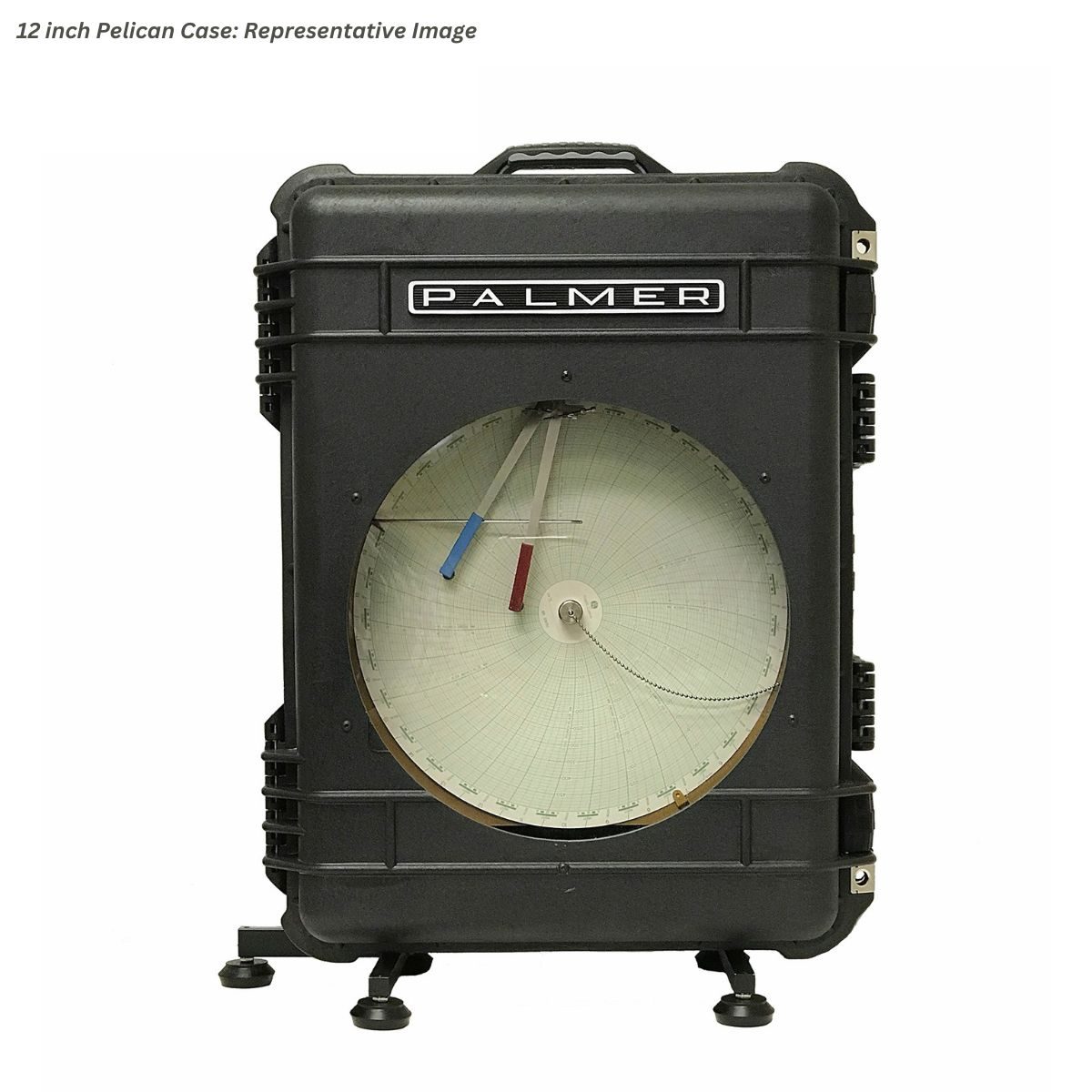

Pelican® Case Pressure and Temperature Circular Chart Recorder, 8 inch and 12 inch - Image 2
Pelican® Case Pressure and Temperature Circular Chart Recorder, 8 inch and 12 inch - Image 3

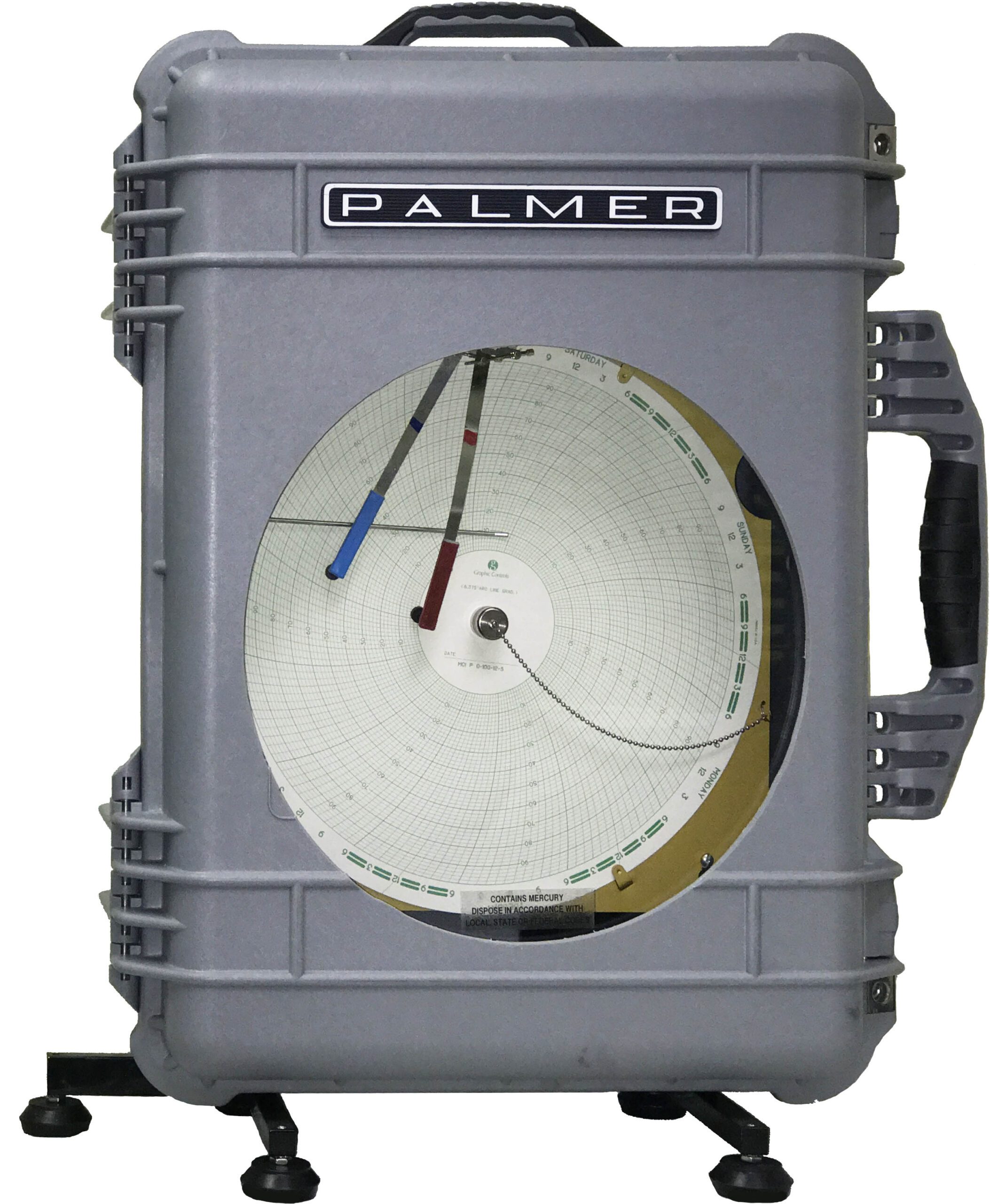

2 Pen Silver Pelican Case Recorder

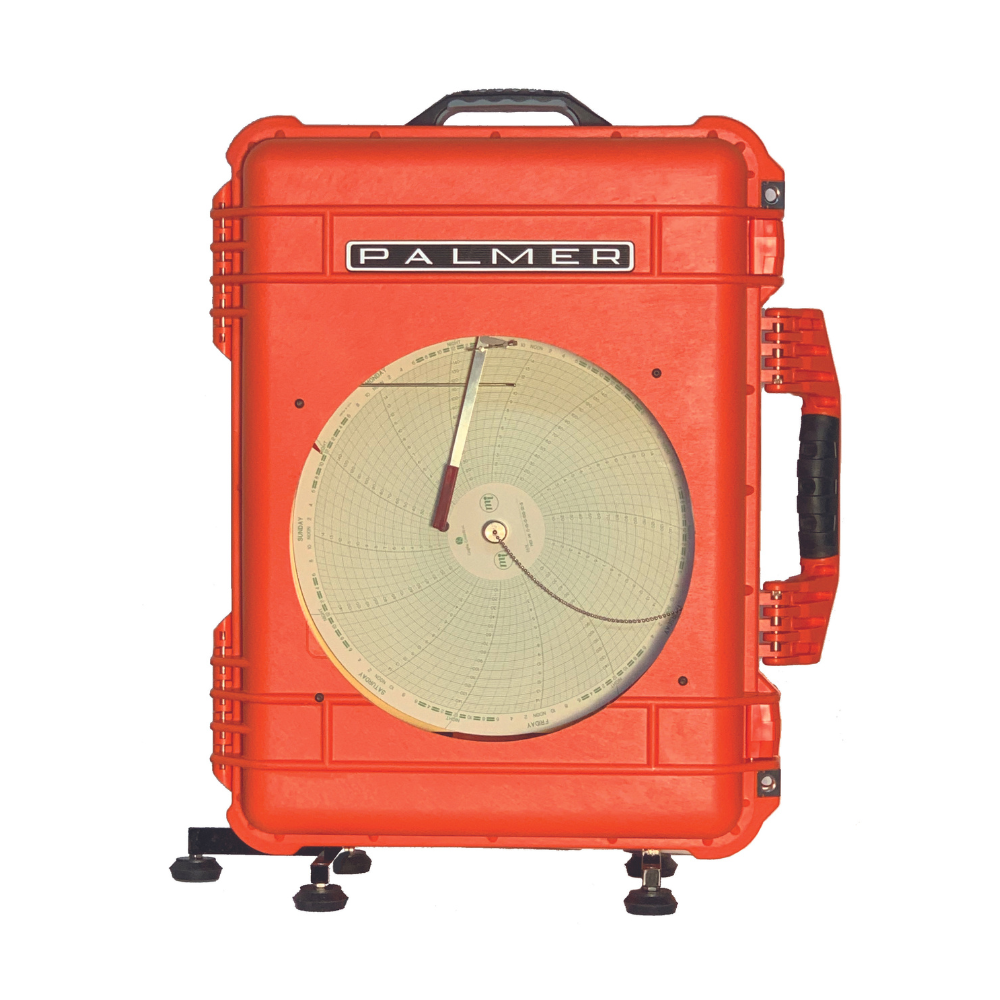

1 Pen Pelican Case Circular Chart Recorder
Temperature & Pressure Chart Recorders
Case Color Swatches

Pelican® Case Pressure and Temperature Circular Chart Recorder, 8 inch and 12 inch

Circular Chart Recorders are a configurable product. Please review our Order Guide and choose the pressure ranges, chart rotation speed, and other specifications needed to build and quote a complete recorder.

SPEC SHEET

MANUAL

ORDER GUIDE

SKU: 3P_3R_Recorder Categories: , , , , ,

Description

Palmer Circular Chart Recorders are durable, fully mechanical units with a low maintenance design.  Housed in a Pelican® brand case and available in 8 inch and 12 inch chart sizes, these recorders are lightweight and easy to carry.

Pelican® brand case circular chart recorders are crush resistant and dust-proof with double throw latches and water tight O-ring seal for protection in harsh environments.  The automatic pressure equalization valve releases built-up pressure and prevents moisture intrusion.  Ideal for transporting to the job site, Pelican® brand cases feature rubber over-molded handle for comfort, open cell core with solid wall design for strength, with heavy duty deflector ribs to protect against shock and impact.  Exterior stainless steel hardware and padlock protectors.  Internals are all stainless steel - corrosion resistant with micro-adjustable wire linkage.

Available with up to 3 pens, all  pressure elements are made of 316SS.  All temperature elements have a 300 Series stainless steel bulb, interconnection capillary, and armor available. Choose between Mercury filled and Mercury Free temperature systems. View temperature recorder bulb options.

All systems are field replaceable.

Choose from our three available Pelican® case mounting styles: portable, pipestand, or wall mount.

Choose from a variety of recorder drives to configure your recorder.  Our most popular option is the PC-11 C-Cell battery powered, eleven speed motor with speeds of 60 minutes, 96 minutes, 12 hours, 24 hours, 48 hours, 7 days, 8 days, 14 days, 16 days, 31 days or 32 days.  Our PC-12 C-Cell battery powered, twelve speed motor offers speeds of 30 minutes, 60 minutes, 2 hours, 4 hours, 6 hours, 8 hours, 12 hours, 24 hours, 3 days, 4 days, and 7 days.  Spring wound drives are available with rotations of 12 hours / 7 days.

Palmer Chart recorders use disposable fine point felt tipped pens in red, green, and blue.  Black and purple pens are available.  We offer standard and specialty charts to meet the needs of your application.

All Palmer Circular Chart Recorders are built to order in our Asheville, NC factory.

*Mercury is prohibited for sale in some states and countries.

Mercury Free Option

Specifications

Arc Line

6-3/8 inch
Case

Pelican® brand case
Available Case Colors

Black (Standard)
Orange
Yellow
Maximum Number of Total Systems

3
Number of Pressure Systems

1, 2
Inches of Mercury Pressure Ranges

0 to 10 Hg
0 to 39 Hg
0 to 50 Hg
Inches of Water Pressure Ranges

0 to 10 in H2O
0 to 15 in H2O
0 to 20 in H2O
0 to 25 in H2O
0 to 30 in H2O
0 to 40 in H2O
0 to 50 in H2O
0 to 60 in H2O
0 to 100 in H2O
Ounces per Square Inch Pressure Ranges

0 to 10 oz/sq. in.
0 to 15 oz/sq. in.
0 to 20 oz/sq. in.
0 to 25 oz/sq. in.
0 to 30 oz/sq. in.
0 to 50 oz/sq. in.
Kilopascal Pressure Ranges

0 to 5 kPa
0 to 20 kPa
0 to 80 kPa
0 to 100 kPa
0 to 500 kPa
0 to 800 kPa
0 to 1,000 kPa
0 to 2,000 kPa
0 to 5,000 kPa
Bar Pressure Ranges

0 to 6 Bar
0 to 10 Bar
0 to 16 Bar
0 to 25 Bar
0 to 40 Bar
0 to 50 Bar
0 to 60 Bar
0 to 100 Bar
0 to 160 Bar
0 to 200 Bar
0 to 250 Bar
0 to 300 Bar
0 to 400 Bar
0 to 500 Bar
0 to 600 Bar
0 to 1,000 Bar
0 to 1,200 Bar
0 to 1,600 Bar
0 to 2,000 Bar
PSI Pressure Ranges

0 to 1 PSI
0 to 3 PSI
0 to 5 PSI
0 to 6 PSI
0 to 8 PSI
0 to 10 PSI
0 to 15 PSI
0 to 20 PSI
0 to 25 PSI
0 to 30 PSI
0 to 35 PSI
0 to 45 PSI
0 to 50 PSI
0 to 60 PSI
0 to 75 PSI
0 to 100 PSI
0 to 120 PSI
0 to 150 PSI
0 to 200 PSI
0 to 250 PSI
0 to 300 PSI
0 to 350 PSI
0 to 400 PSI
0 to 500 PSI
0 to 600 PSI
0 to 750 PSI
0 to 800 PSI
0 to 1,000 PSI
0 to 1,500 PSI
0 to 2,000 PSI
0 to 2,500 PSI
0 to 3,000 PSI
0 to 4,000 PSI
0 to 5,000 PSI
0 to 6,000 PSI
0 to 8,000 PSI
0 to 10,000 PSI
0 to 15,000 PSI
0 to 20,000 PSI
0 to 30,000 PSI
3 to 15 PSI
Pressure Process Connection

Standard: 1/4 inch NPT for pressure ranges at or below 10,000 PSI., Optional: 1/2 inch NPT., Autoclave fitting: Specify for 0 to 15,000 PSI, 0 to 20,000 PSI, and 0 to 30,000 PSI ranges. Optional for 0 to 10,000 PSI.
Number of Temperature Systems

1, 2
Mercury Filled °C Temperature Ranges

0° to 60°C
0° to 100°C
0° to 120°C
0° to 150°C
0° to 200°C
0° to 250°C
0° to 300°C
0° to 350°C
0° to 400° C
Non-Toxic Filled °C Temperature Ranges

0° to 60°C
0° to 100°C
0° to 120°C
0° to 150°C
0° to 200°C
0° to 250°C
Hydrocarbon Filled °C Temperature Ranges

0° to 60°C
0° to 100°C
0° to 120°C
0° to 150°C
0° to 200°C
0° to 250°C
0° to 300°C
Mercury Filled °F Temperature Ranges

-30° to 120°F
0° to 100°F
0° to 120°F
0° to 150°F
0° to 200°F
0° to 250°F
0° to 300°F
0° to 400°F
0° to 500°F
0° to 600°F
0° to 800°F
Non-Toxic Filled °F Temperature Ranges

-30° to 120°F
0° to 100°F
0° to 120°F
0° to 150°F
0° to 200°F
0° to 250°F
0° to 300°F
0° to 400°F
0° to 500°F
Hydrocarbon Filled °F Ranges

-30° to 120°F
0° to 100°F
0° to 120°F
0° to 150°F
0° to 200°F
0° to 250°F
0° to 300°F
0° to 400°F
0° to 500°F
0° to 600°F
Battery Powered Recorder Drives

PC-11, eleven speed motor with speeds at: 60 minutes, 96 minutes, 12 hours, 24 hours, 48 hours, 7 days, 8 days, 14 days, 16 days, 31 days, or 32 days with OFF option., PC-12, twelve speed motor with speeds at: 30 minutes, 60 minutes, 2 hours, 4 hours, 6 hours, 8 hours, 12 hours, 24 hours, 3 days, 4 days, and 7 days, with NO OFF option.
Spring Wound Recorder Drives

Dual Speed: Standard Rotation: 24 hours / 7 days., Dual Speed: Optional Rotation: 15 minutes / 1 hour, Dual Speed: Optional Rotation: 1 hour / 3 hour, Dual Speed: Optional Rotation: 2 hour / 8 hour, Dual Speed: Optional Rotation: 96 minute / 24 hours., Single Speed: Optional Rotation: 4 hour.
Mounting Options

Wall Mounted, Portable, Pipestand Mounted
Door Style

Door with Instrument Glass Window
Door with Plexiglass Window
Solid Door
Door with Shatter Proof Safety Glass Window
Capillary Type

Flex Armored Capillary, 1/4 inch diameter, 5 feet included. Mercury filled is 304SS, Mercury-Free is 316SS.

Bendable Stiff Armor, 3/16 inch diameter, 5 feet included. Mercury filled only. 304SS.
Capillary Length

Mercury Filled Systems: Up to 25 feet.
Non-Toxic Filled Systems: Up to 15 feet.
Hydrocarbon Filled Systems: Up to 30 feet.
Call for Systems from 31 to 99 feet.
Bulb Type

Mercury Filled Systems: 45-5, 45-11, 45-12, 45-13, 45-14, 45-29, 45-30.

Mercury Free Systems: 46-5, 46-14.
Pen Colors

Standard: Red, Blue, Green.
Optional: Black
Pressure Accuracy

± 1/2 chart graduation for pressure measurement

Optional: ± 1/4 chart graduation - available on the Top Pen only, for ranges 30 to 10,000 PSI only with Standard Pressure Elements only. Available only from factory; request at time of order.
8 inch Case Dimensions (Case Only)

16.44 in. x 13.00 in. x 6.82 in. (41.8 x 33 x 17.3 cm). Does not include feet or pedestal.
12 inch Case Dimensions (Case Only)

19.78 in. x 15.77 in. x 7.41 in. (50.2 x 40.1 x 18.8 cm). Does not include feet or pedestal.
