Mini Single Position Temp-Plate® Temperature Sensitive Labels

One position round Temp-Plates are excellent for monitoring critical process points.

Buy Mini Round Temp-Plates online

Description

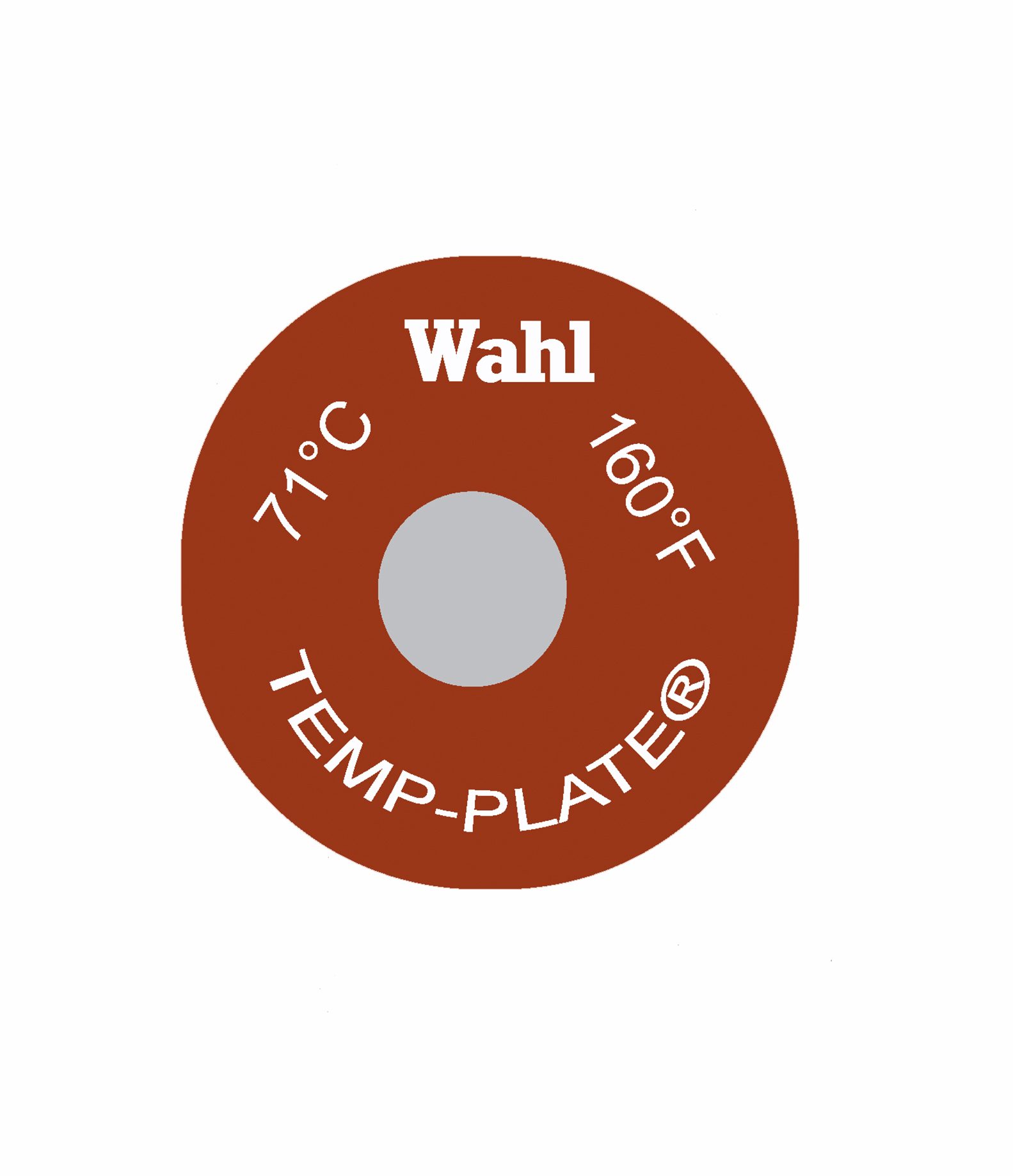

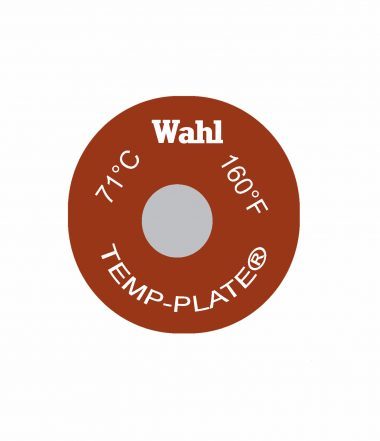

Temp-Plate® temperature sensitive labels have heat sensitive indicator "positions" that turn permanently black when the rated temperature is reached or exceeded, providing a permanent record.   This model is round with a diameter of 0.56 inches (14mm), and has one indication point.

Useful for general purpose maintenance as well as specialized applications. Easy, self-adhesive installation on most surfaces.   Temperature position is clearly printed with the rated temperature in both °F and °C.  Labels are sold in a recloseable bag of 20 labels.

Diameter is 0.56 inches (14 mm).

NIST Calibration data is available for this label.

Built in Asheville, NC USA.

Purchase Temp-Plate® labels online from our dedicated website.

Note that all Temp-Plate® temperature sensitive labels containing a temperature position of lower than 110°F/43°C are considered low temperature and must be shipped with an ice pack via overnight service to prevent the labels from turning in transit.

Specifications

Number of Temperature Positions

1

Size

.56" Diameter (14mm)

Shape

Circular

Scale

°F and °C

Temperature Points Available

Points available from 100°F to 500°F (38°C to 260°C).

Labels per Bag

20

Cover Material

Mylar (clear) for ranges 90/350°F (32/176°C). Kapton (amber) for ranges 350/500°F (176/260°C).

Accuracy

±1% NIST Traceable accuracy from 90°F to 500°F (32°C to 260°C)

NIST Available?

Yes
