Mini Round Temp-Plate® Temperature Sensitive Labels

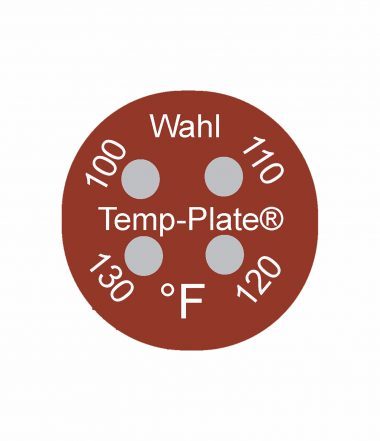

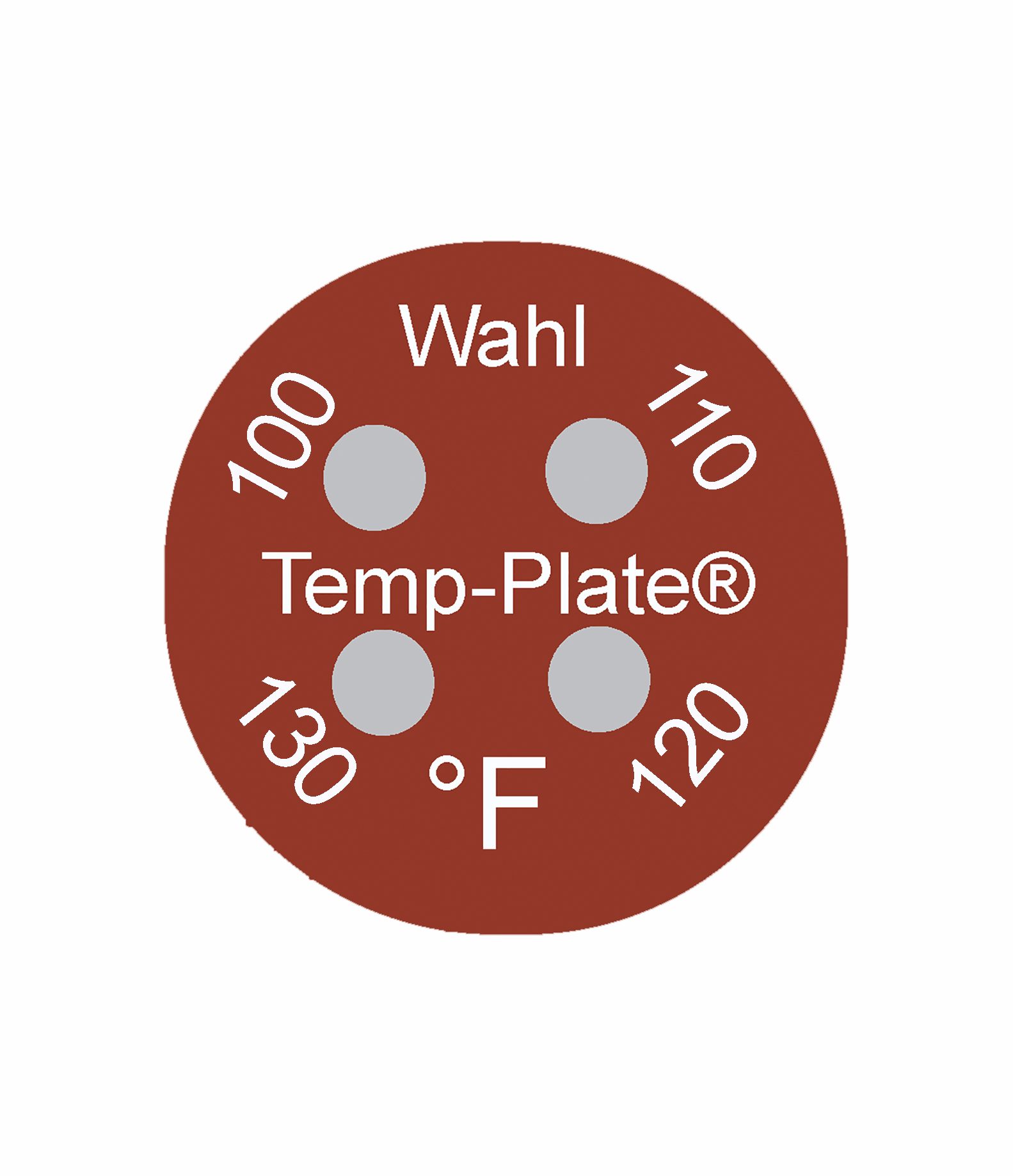

Mini Temp-Plate® labels are 0.56 inch in diameter and have four indicator positions.

Buy the labels online at wahltempplates.com

Description

Temp-Plate® temperature sensitive labels have heat sensitive indicator "positions" that turn permanently black when the rated temperature is reached or exceeded, providing a permanent record.   This miniature four position label is round.

Useful for general purpose maintenance as well as specialized applications. Easy, self-adhesive installation on most surfaces. Careful selection of the temperature points allows for detection and recording of most overheat occurrences.  Each temperature position is clearly printed with the rated temperature.   Labels are sold in a recloseable bag of 10 labels.

0.56 inch (14mm) diameter.

NIST Calibration data is available for this label.

Built in Asheville, NC USA.

Purchase Temp-Plate® labels online from our dedicated website.

Note that all Temp-Plate® labels containing a temperature position of lower than 110°F/43°C are considered low temperature and must be shipped with an ice pack via overnight service to prevent the labels from turning in transit.

Specifications

Number of Temperature Positions

4

Size

.56” (14mm) Diameter

Shape

Circular

Scale

Either °F or °C

Temperature Ranges Available

Ranges available from 100°F-130°F labels to 310°F-340°F labels in Fahrenheit, or 37°C-54°C labels to 154°C-171°C labels in Celsius.

Labels per Bag

10

Cover Material

Mylar (clear) for ranges 90/350°F (32/176°C). Kapton (amber) for ranges 350/500°F (176/260°C).

Accuracy

±1% NIST Traceable accuracy from 90°F to 500°F (32°C to 260°C)

NIST Available?

Yes
