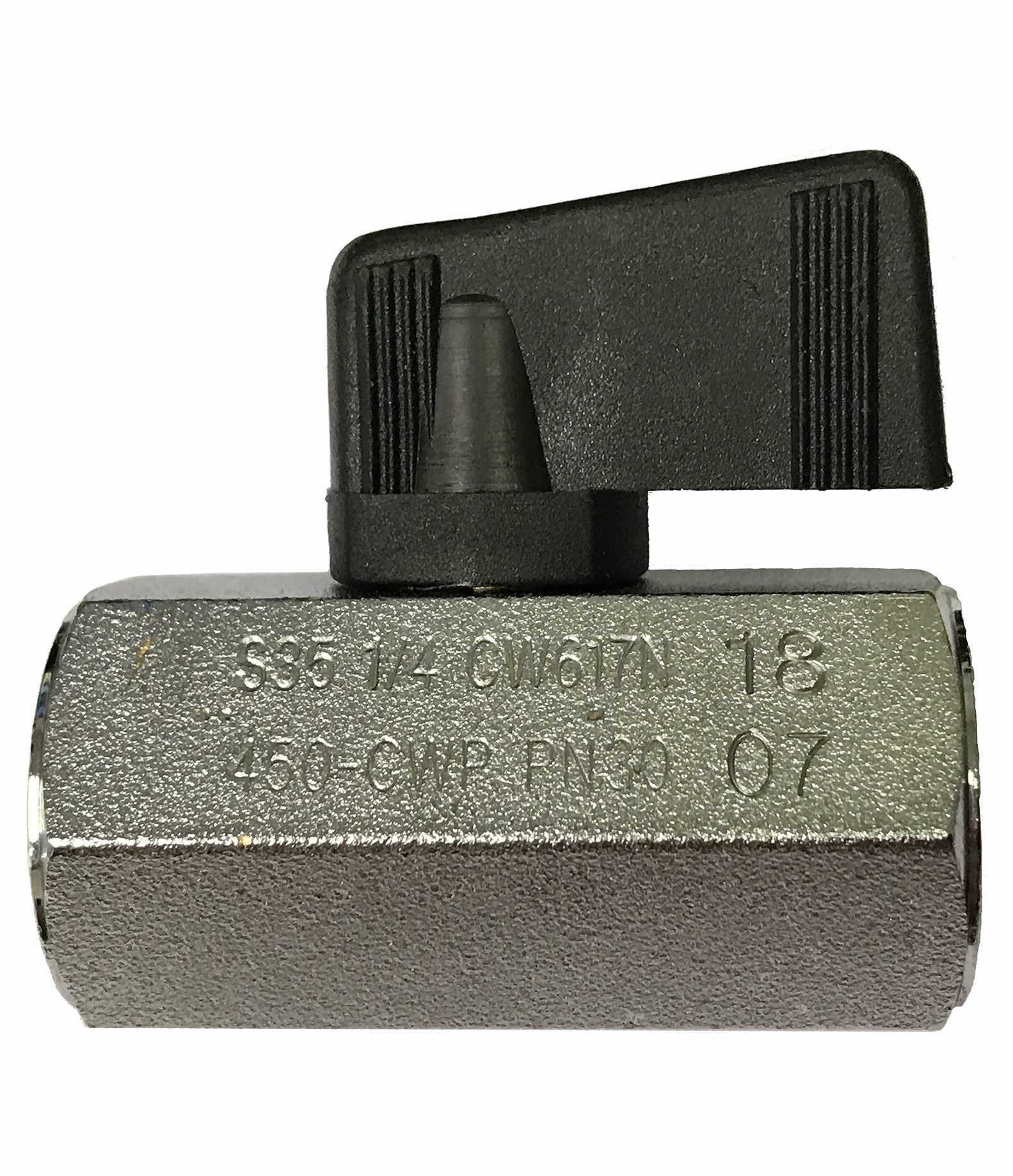

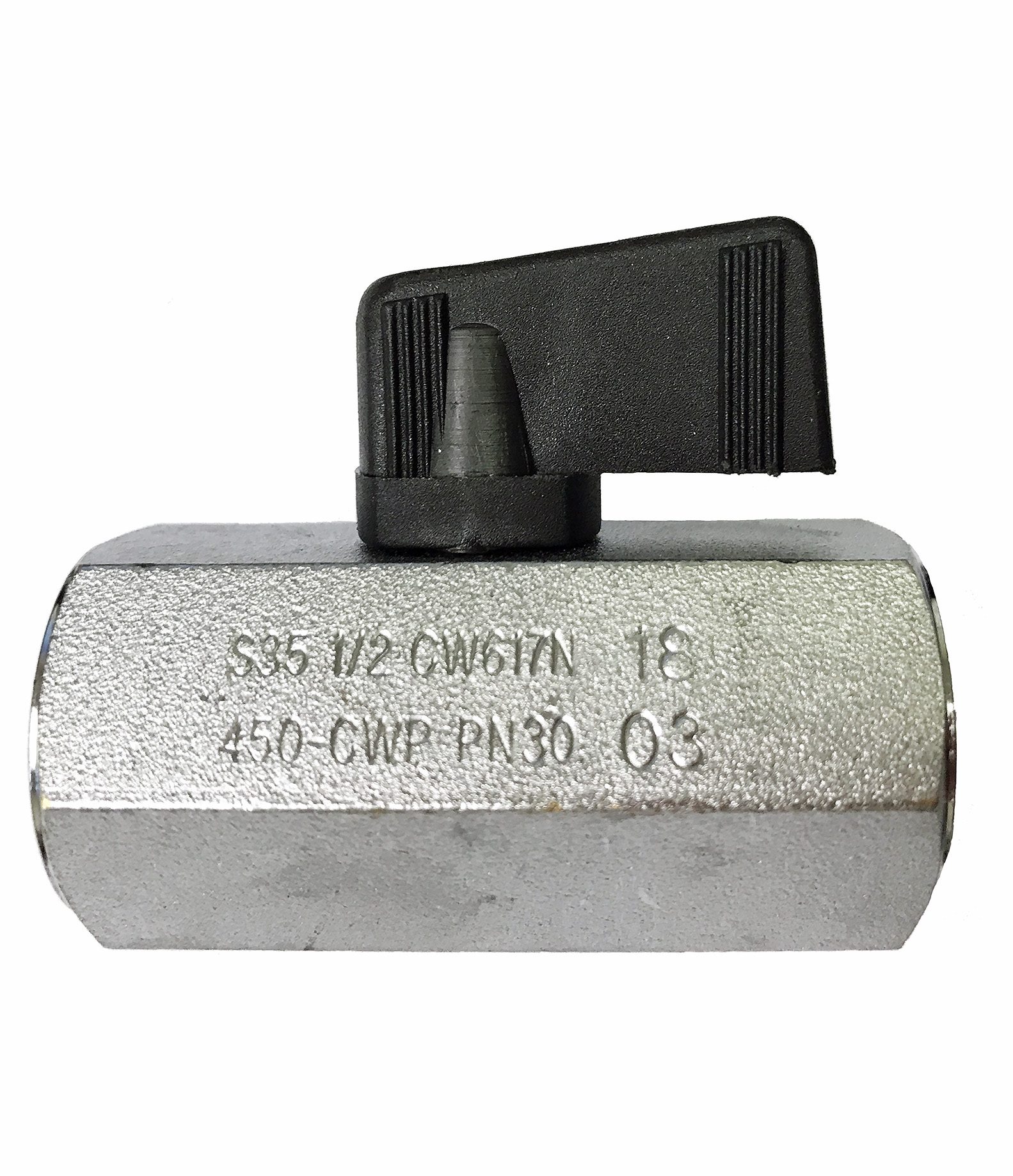

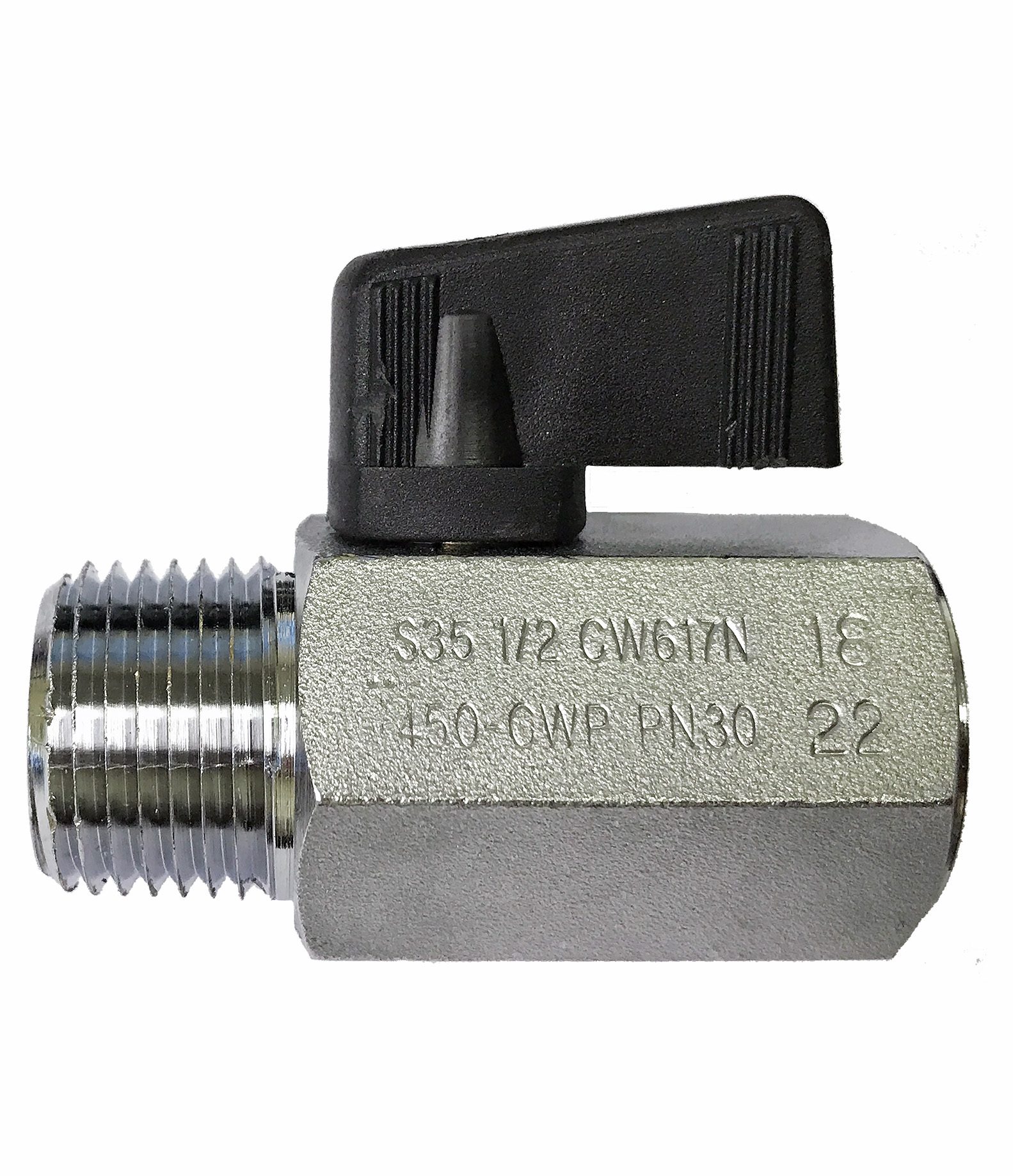

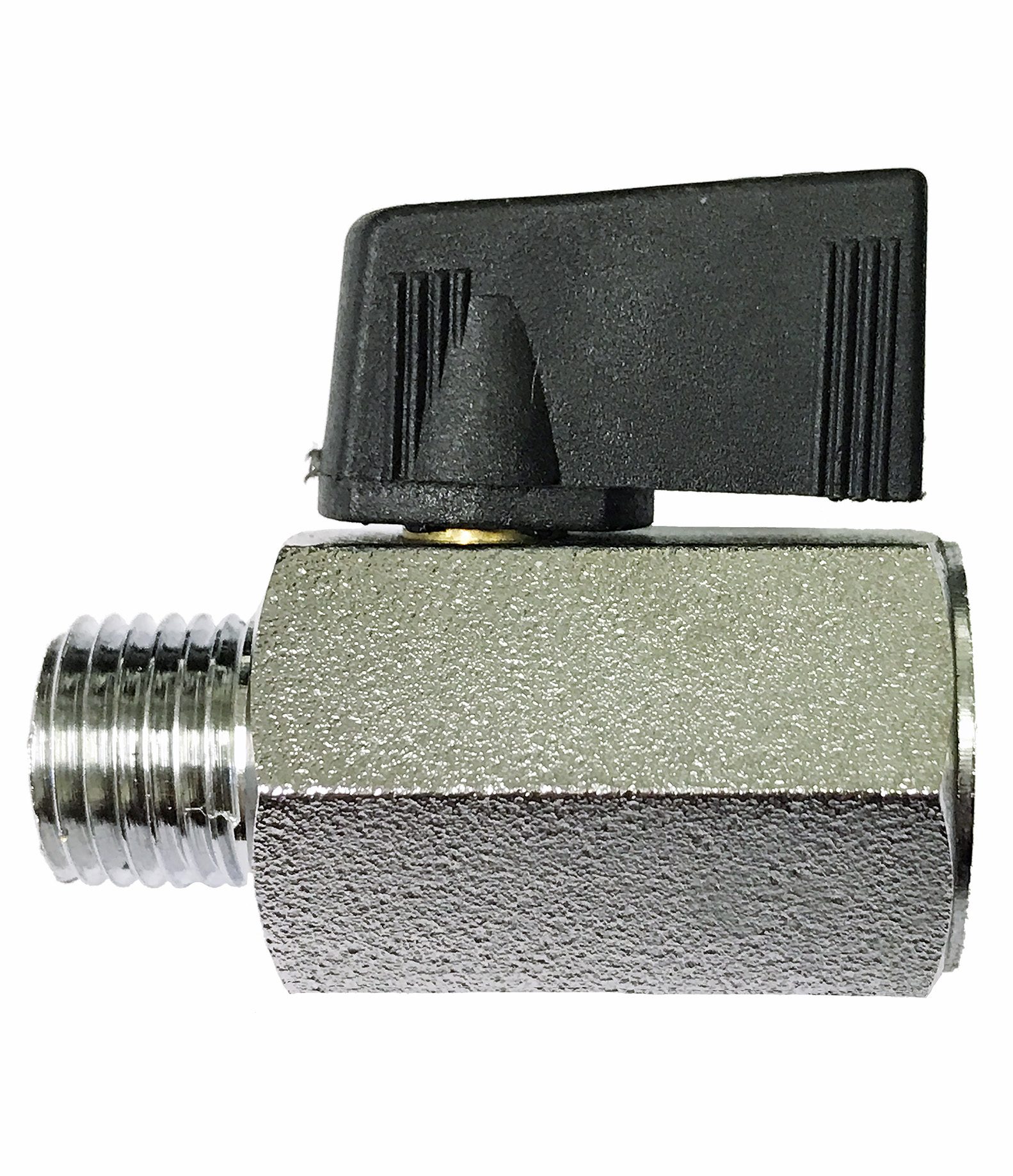

Ball Valves

Description

Use a ball valve to turn on or off the flow of pressure to allow for the removal of a pressure gauge for calibration or replacement purposes.  May be installed for flow in either direction. The ball is hard chrome plated brass, while the body of the valve is nickel plated brass.  Stem is blow-out proof.

Available in Female -Female and Male-Female configurations, in either 1/4 inch NPT or 1/2 inch NPT connection size.

Specifications

Material

Nickel Plated Brass

Ball

Hard Chrome Plated Brass

Fitting

1/4 inch NPT
1/2 inch NPT

Handle

Black nylon wedge handle

Connection

Female - Female
Male - Female

Temperature Rating

-4° to 200°F

Pressure Rating

Up to 450 PSI
