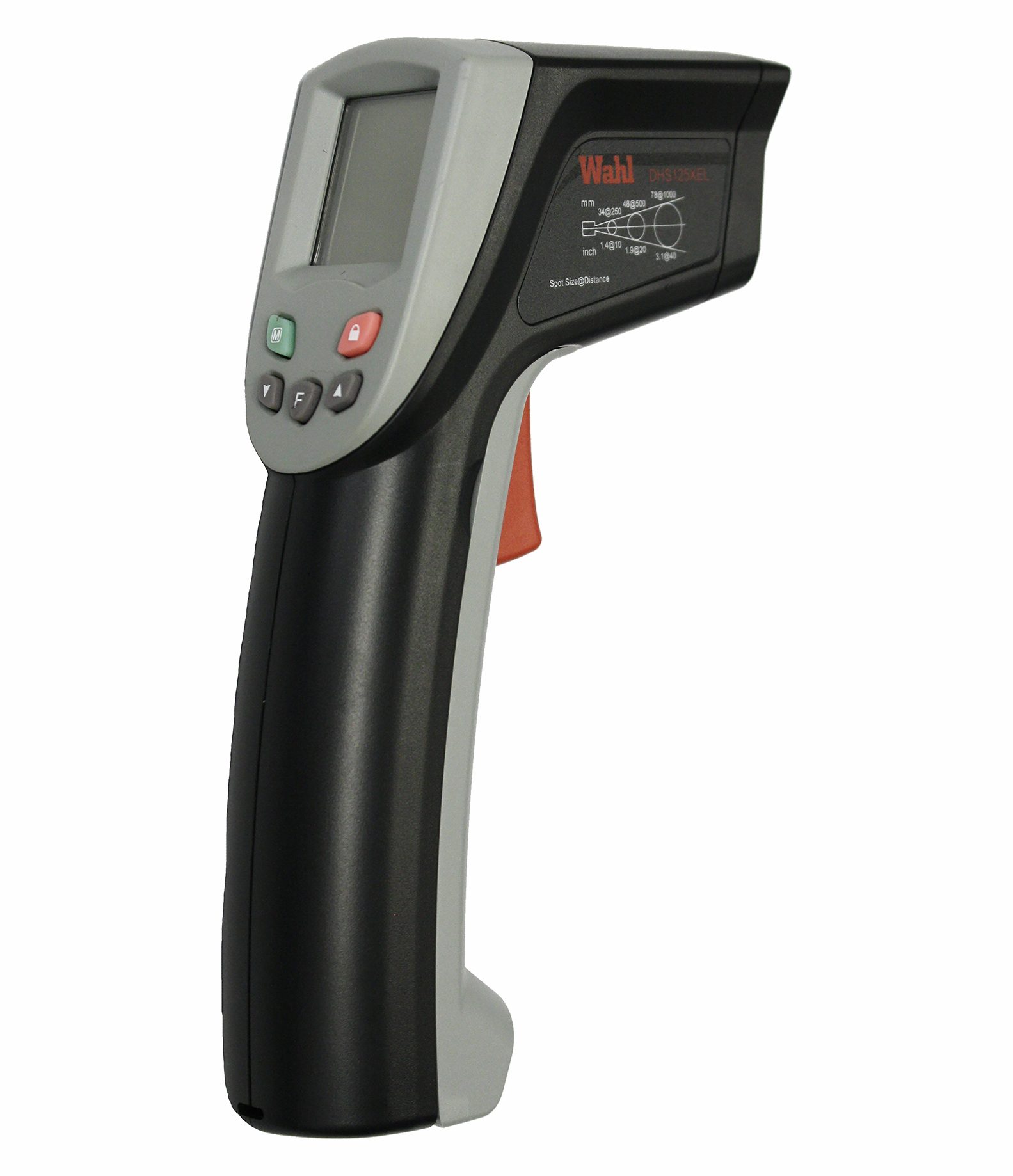

DHS125XEL Economy Hybrid Infrared Thermometer

Temperature range is -25° to +1400°F (-32° to +760°C).  Distance to spot ratio is 12:1, and spectral range is 5 to 14 μm.

SPEC SHEET

MANUAL

SKU: DHS125XEL Categories: , , ,

Description

The Wahl Heat Spy DHS125XEL is a hybrid contact and non-contact thermometer.  Using a K Type thermocouple as a reference, this unit has built in software that determines the emissivity of a target object and automatically adjusts the emissivity of the instrument to the proper setting.  This handheld unit is lightweight and easy to hold; thermocouple plugs in to side of unit.  Distance to spot ration is 12:1; measure temperatures up to 1400°F (760°C) from a comfortable distance.

This model includes advanced features, including:

  • Display thermocouple measurements on screen
  • Max / Min / Average / ΔT calculations
  • Hi & Low alarms - screen changes color
  • Ten points of memory

The DHS125XEL comes with user manual 9V battery, and canvas holster style case with belt loop.

Thermocouple Surface Probe sold separately.

NIST Calibration Available, sold separately.

Spec Table & Economy Handheld Infrared Comparison

Specifications

Weight 12 oz
Dimensions 4 × 3 × 9 in
Category

Hybrid Infrared
Temperature Range

-25° to +1400°F (-32° to +760°C)
Distance to Spot Ratio

12:1
Spectral Range

5 to 14 μm
eSmart Technology

Using an external Type K thermocouple as a reference, the built-in software determines the emissivity of the target object and automatically sets the emissivity of the instrument
Type K Thermocouple

Yes
Thermocouple Range

-328° to 2516°F (-200° to 1380°C)
Thermocouple Accuracy

±1.5% +1 degree
Emissivity

Adjustable 0.10 to 1.0
Accuracy at ambient operating temperature of 77°F (25°C)

±5.4°F (±3°C) From -25° to -4°F (-32° to -20°C) ±3.6°F (±2°C) From -4° to 212°F (-20° to 100°C) ±2% Above 212°F (100°C)
Repeatability

±2°F (±1°C)
Resolution

0.1°F (0.1°C)
Response Time

500 milliseconds
Operating Temperature

32° to 122°F (0 to 50°C), at 10 - 95% relative humidity
Storage Temperature

14° to 140°F (-10° to 60°C)

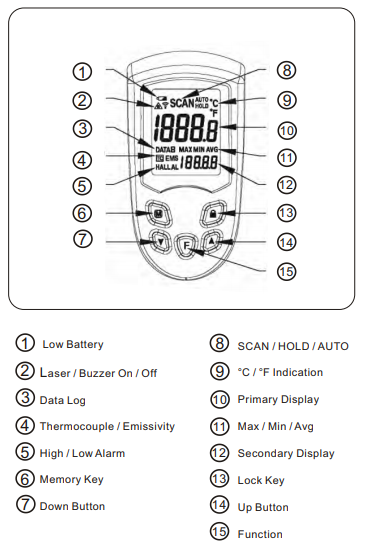

LCD Backlight

Yes
Dual Display

Yes
°F &°C Selectable

Yes
Laser Sight Switchable

User Selectable, Class II Laser, less than 1mW
Auto Power Off

Automatically after approximately 6 seconds
Max/Min/Avg

Yes
Auto Measuring

Yes
Audible Alarm

Yes
10 Point Memory

Yes
Electronic Trigger Lock

Yes
Tripod Mount

Yes
Power

9V Battery
Battery Life

15 hours of continuous operation
Dimensions

7.09 inches x 5.12 inches x 1.57 inches (180 mm x 130 mm x 40 mm)
Weight with Battery

Approximately 6.87 oz (195 g)
Included Accessories

User Manual, 9V Battery, Carrying Case
Suggested Applications

Electrical troubleshooting, automotive maintenance, HVAC audits, Food safety, maintenance & inspections
CE Certification

Yes; EN61326: Electrical equipment for measurement, control, and laboratory use. IEC61000-4-2: Electrostatic discharge immunity test. IEC61000-4-3: Radiated, radio-frequency, electromagnetic field immunity test. IEC61000-4-8: Power frequency magnetic field immunity test.
Harmonized Tariff Code

9027.50.8020
Warranty

One Year Warranty covers defects in materials and workmanship
