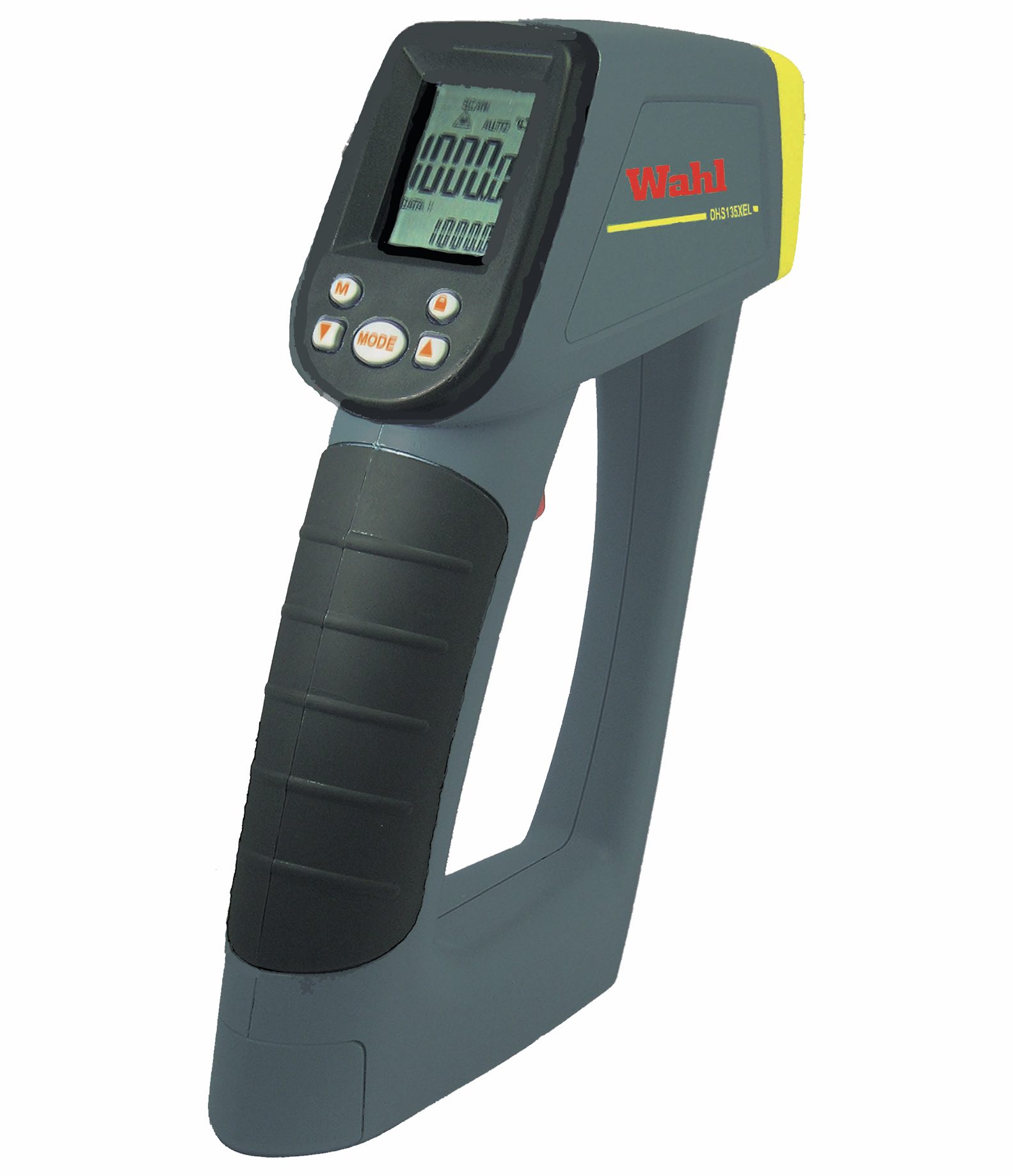

DHS135XEL Economy Infrared Thermometer
DHS135XEL Economy Infrared Thermometer - Image 2

DHS135XEL Economy Infrared Thermometer

This item is discontinued.

Out of stock

SKU: DHS135XEL Categories: ,

Description

The Wahl DHS135XEL is a light weight, easy to use handheld non-contact thermometer.  With a 30:1 distance to spot ratio, the DHS135XEL is useful for measuring over long distances.  Choose between °F and °C display.  LCD screen is backlit for easy reading. Lock button allows the user to continuously measure and display the temperature without pulling the trigger.

The DHS135XEL features include:

  • Max / Min / Average / ΔT calculations
  • Hi & Low audible alarm
  • Ten points of memory
  • Adjustable emissivity
  • Integrated tripod mount

The DHS135XEL comes with user manual, 9V battery, vinyl carrying case and wrist strap.

NIST Calibration Available, sold separately.

Spec Table & Economy Handheld Infrared Comparison

Specifications

Weight 32 oz
Dimensions 10 × 3 × 11 in
Category

High Temperature, Long Range, Extended Features
Temperature Range

-58° to 1832°F (-50° to 1000°C)
Distance to Spot Ratio

30:1
Spectral Range

8 to 14μm
Emissivity

Adjustable 0.10 to 1.00
Accuracy

±5.4°F (±3°C) from -58° to -4°F (-50° to -20°C) ±3.6°F (±2°C) from -4° to 212°F (-20° to 100°C) ±2% above 212°F (100°C)
Repeatability

±2°F (±1°C)
Resolution

0.1°F (0.1°C)
Response Time

500 milliseconds
Operating Temperature

32° to 122°F (0 to 50°C), at 10 - 90% relative humidity
Storage Temperature

14° to 140°F (-10° to 60°C)
LCD Backlight

Yes
Dual Display

Yes
°F &°C Selectable

Yes
Laser Sight Switchable

User Selectable, Class II Laser, less than 1mW
Auto Power Off

Automatically after approximately 6 seconds
Max/Min/Avg/ΔT

Yes
Auto Measuring

Yes
Audible Alarm

Yes
10 Point Memory

Yes
Electronic Trigger Lock

Yes
Tripod Mount

Yes
Power

9V Battery
Battery Life

15 hours of continuous operation
Dimensions

7.9 inches x 5.0 inches x 1.9 inches (200mm x 127mm x 47mm)
Weight with Battery

12.7 oz (360g)
Included Accessories

User Manual, 9V Battery, Carrying Case, and Wrist Strap
CE Certified

Yes; EN61326: Electrical equipment for measurement, control, and laboratory use. IEC61000-4-2: Electrostatic discharge immunity test. IEC61000-4-3: Radiated, radio-frequency, electromagnetic field immunity test. IEC61000-4-8: Power frequency magnetic field immunity test.
Harmonized Tariff Code

9027.50.8020
Warranty

One Year Warranty covers defects in materials and workmanship
