DHS235XEL Economy Infrared Thermometer

The DHS235XEL is our highest temperature range option in our smaller handheld thermometer range. The 50:1 distance to spot ratio makes this model suitable for extra long range use.

Description

The DHS235XEL is our highest temperature range option in our economy handheld thermometer range.  The extended temperature range of this unit is -58° to 2732°F (-50° to 1500°C).  The 50:1 distance to spot ratio makes this model suitable for extra long range use. Backlit liquid crystal display is easy to read. Convenient handheld size means buttons are easily reachable. Laser sighting helps with effective aiming.

The DHS235XEL features

  • 10 point memory log that can save current temperature
  • MAX/MIN/AVG/ΔT
  • Electronic Trigger Lock allows the user to continuously measure and display the temperature without pulling the trigger
  • Ultra low power consumption in shut-down mode
  • Audible hi and low alarms

NIST Calibration is available, sold separately.

Spec Table & Economy Handheld Infrared Comparison

Specifications

Weight 31 oz
Dimensions 10 × 3 × 11 in
Category

Extra High Temperature, Extra Long Range, Extended Features

Temperature Range

-58° to 2732°F (-50° to 1500°C)

Distance to Spot Ratio

50:1

Spectral Range

8 to 14μm

Emissivity

Adjustable 0.10 to 1.00

Accuracy

±5.4°F (±3°C) from -58° to -4°F (-50° to -20°C) ±3.6°F (±2°C) from -4° to 212°F (-20° to 100°C) ±2% above 212°F (100°C)

Repeatability

±2°F (±1°C)

Resolution

0.1°F (0.1°C)

Response Time

500 milliseconds

Operating Temperature

32° to 122°F (0 to 50°C), at 10 - 90% relative humidity

Storage Temperature

14° to 140°F (-10° to 60°C)

LCD Backlight

Yes

Dual Display

Yes

°F &°C Selectable

Yes

Laser Sight Switchable

User Selectable, Class II Laser, less than 1mW

Auto Power Off

Automatically after approximately 6 seconds

Max/Min/Avg/ΔT

Yes

Auto Measuring

Yes

Audible Alarm

Yes

10 Point Memory

Yes

Electronic Trigger Lock

Yes

Tripod Mount

Yes

Power

9V Battery

Battery Life with Laser Off

15 hours of continuous operation

Dimensions

6.7 inches x 5.2 inches x 1.8 inches (200 mm x 132 mm x 45 mm)

Weight with Battery

11.6 oz (330g)

Included Accessories

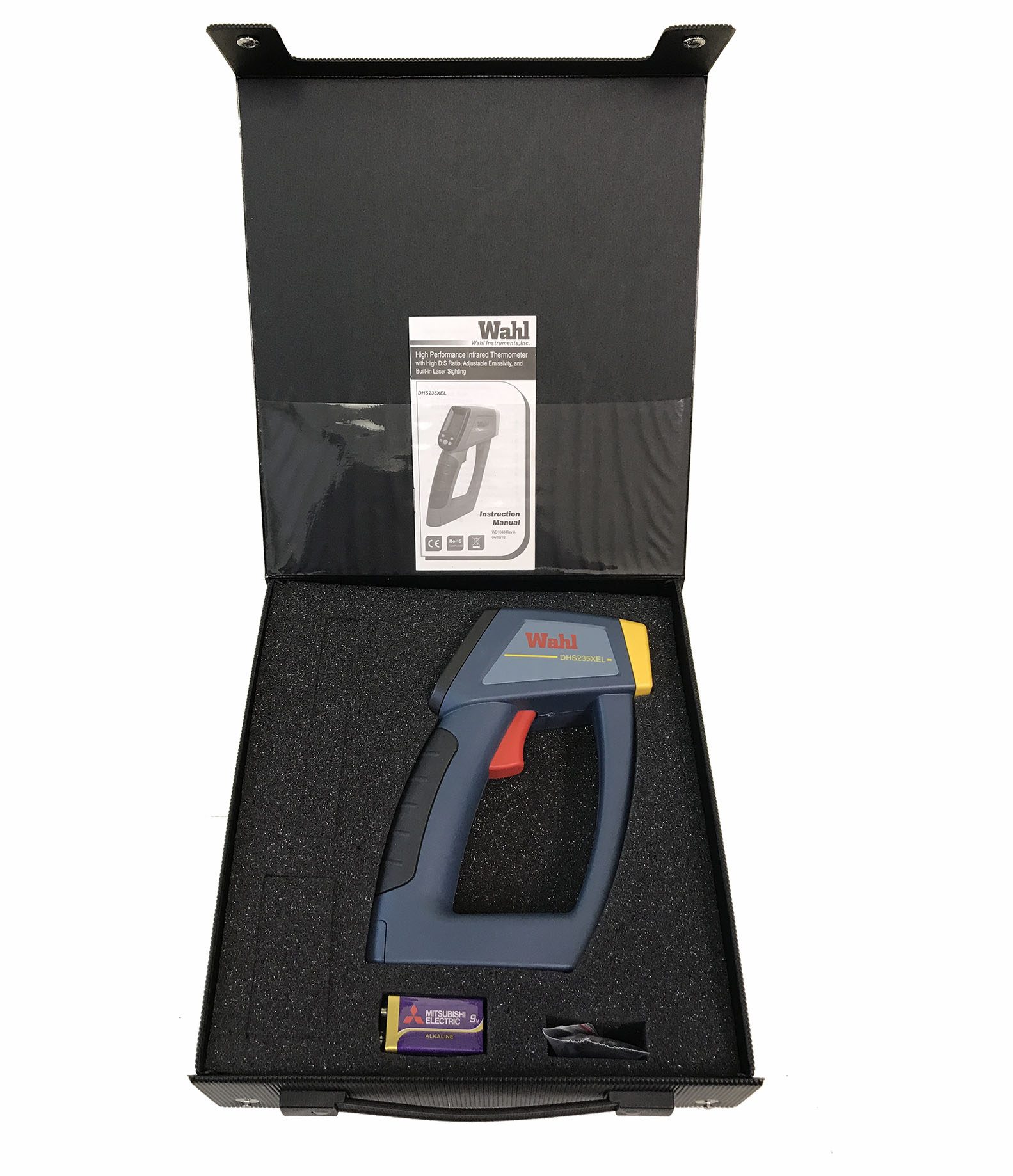

User Manual, 9V Battery, Carrying Case, and Wrist Strap

Warranty

One Year Warranty covers defects in materials and workmanship
