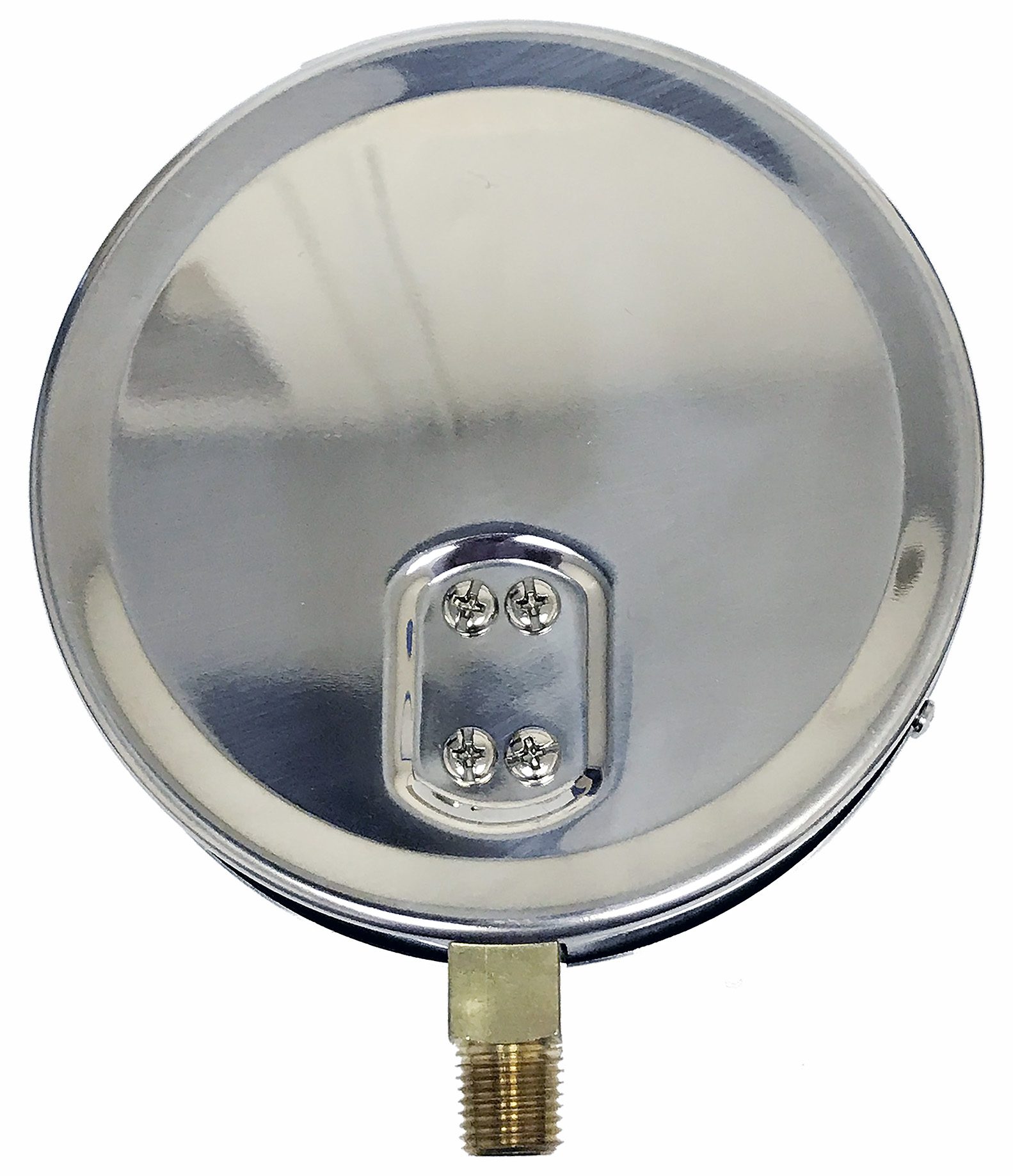

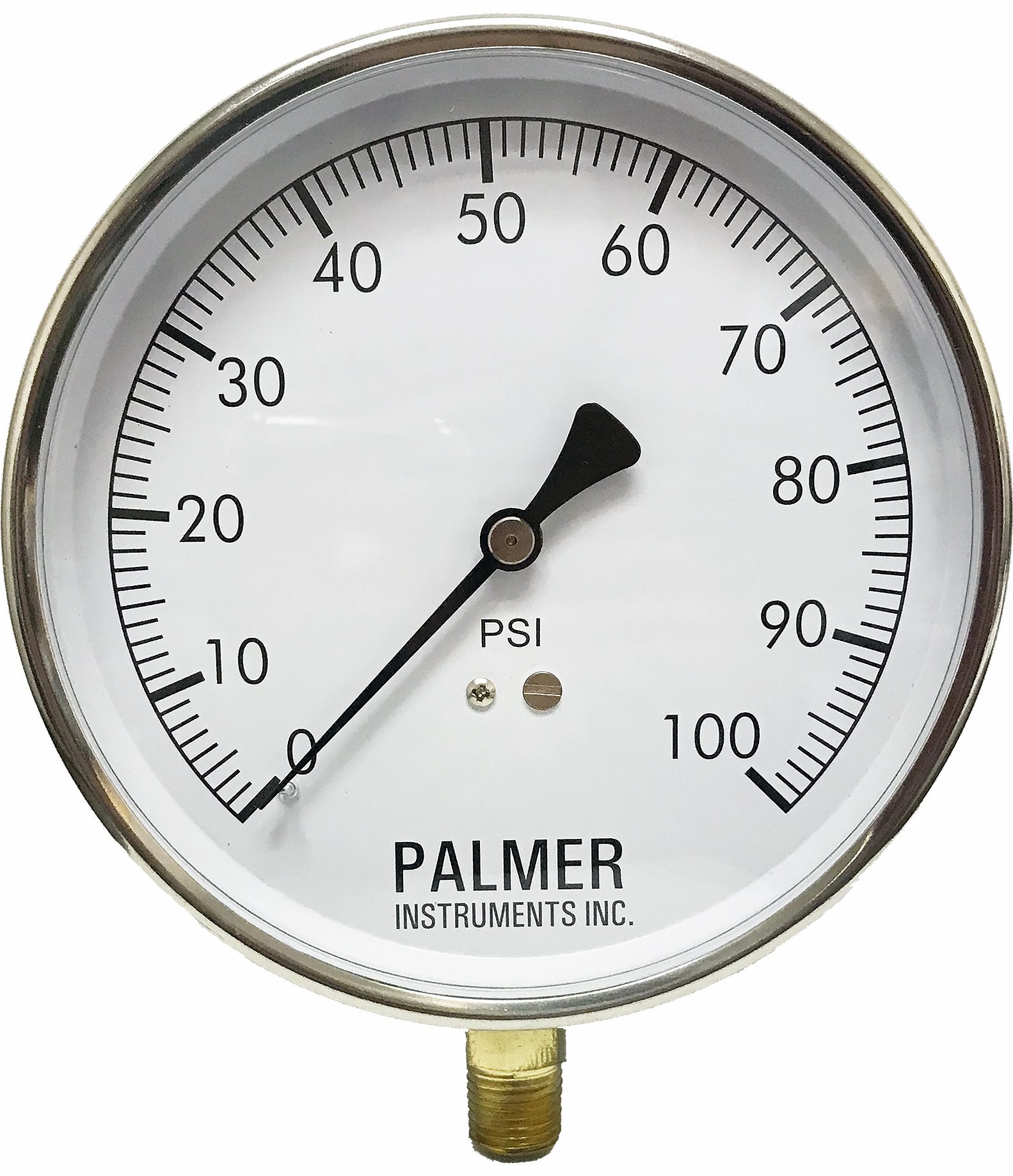

SB Stainless Steel Case Contractor Gauges

SKU: SB_Series Categories: , ,

Description

SB Stainless Steel Contractor gauges are a durable, economical choice for contractors and projects. Ideal for HVAC, water, air, gas, oil, and other non-corrosive applications.

Economically priced.  Can be re-calibrated by removing the crystal.

Available in 4.5 inch stainless steel case diameter.

Specifications

Case Size

4.5 inches (125 mm)

Case Material

304 AISI Stainless Steel

Ring

304SS. Removeable Bezel Ring with 3 screws.

Window

Acrylic

Socket

Brass

Connection

1/4 inch NPT

Accuracy

± 1% of Full Scale

Bourdon Tube

Phosphor Bronze C-Tube

Movement

Brass

Pointer

Painted Black Aluminum, zero adjustable.

Dial

White aluminum with black markings in accordance with ASME B40.1 -2005

Scales Available

PSI
Metric
Dual Scale

Ambient Temperature Limits

-4° to 140°F (-20° to 60°C)

Available PSI Ranges

15 PSI
30 PSI
60 PSI
100 PSI
160 PSI
200 PSI
300 PSI
500 PSI

Available Vacuum Ranges

-30 inches of HG to 0 PSI

Available Compound Ranges

-30 inches of HG to 30 PSI

Available Mounting Styles

Stem Mount, Lower Connected

Fill

Dry

Ingress Protection

IP40

Overpressure Limit

120% of range
