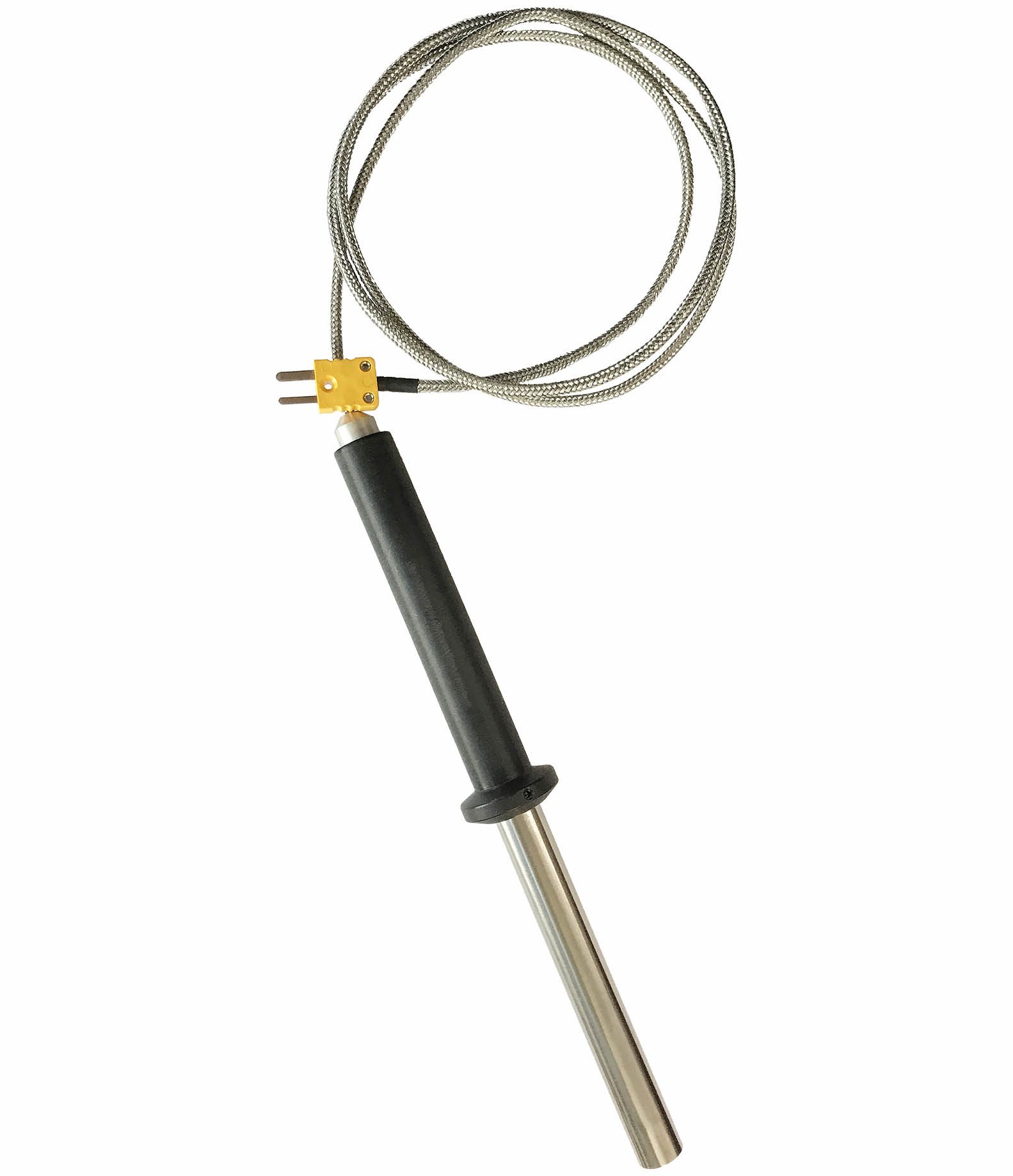

Thermocouple Type K Heavy Duty Surface Probe, Handle Only

Description

TC809 is our Heavy Duty Surface Probe Handle, for use with snap-in, (replaceable and Surface Probe interchangeable) probe tips with miniature Z-tip, spring-loaded Type K thermocouples protected by ceramic housing.

Includes braided stainless steel extension cable, 4 feet long.  Extra heavy duty handle is available with 5 inch or 12 inch shank.  Order with the desired tip:

TC809H

TC809R

TC809S

TC821H

TC821R

TC821S

Specifications

Style

Surface

Shank Length

5 inches.
12 inch shank model available

Shank Diameter

1/2 inch

Shank Material

Stainless Steel

Sensor

Type K Thermocouple

Available Models

TC809: 5 inch shank
TC809-12: 12 inch shank

Handle

Yes

For Use With

Ingots, furnaces, kilns, molds and platens

Temperature Limit

1200°F

Response Time

3 second response measured on clean hot plate

Connector

Type K ANSI mini-connector plug
