Description

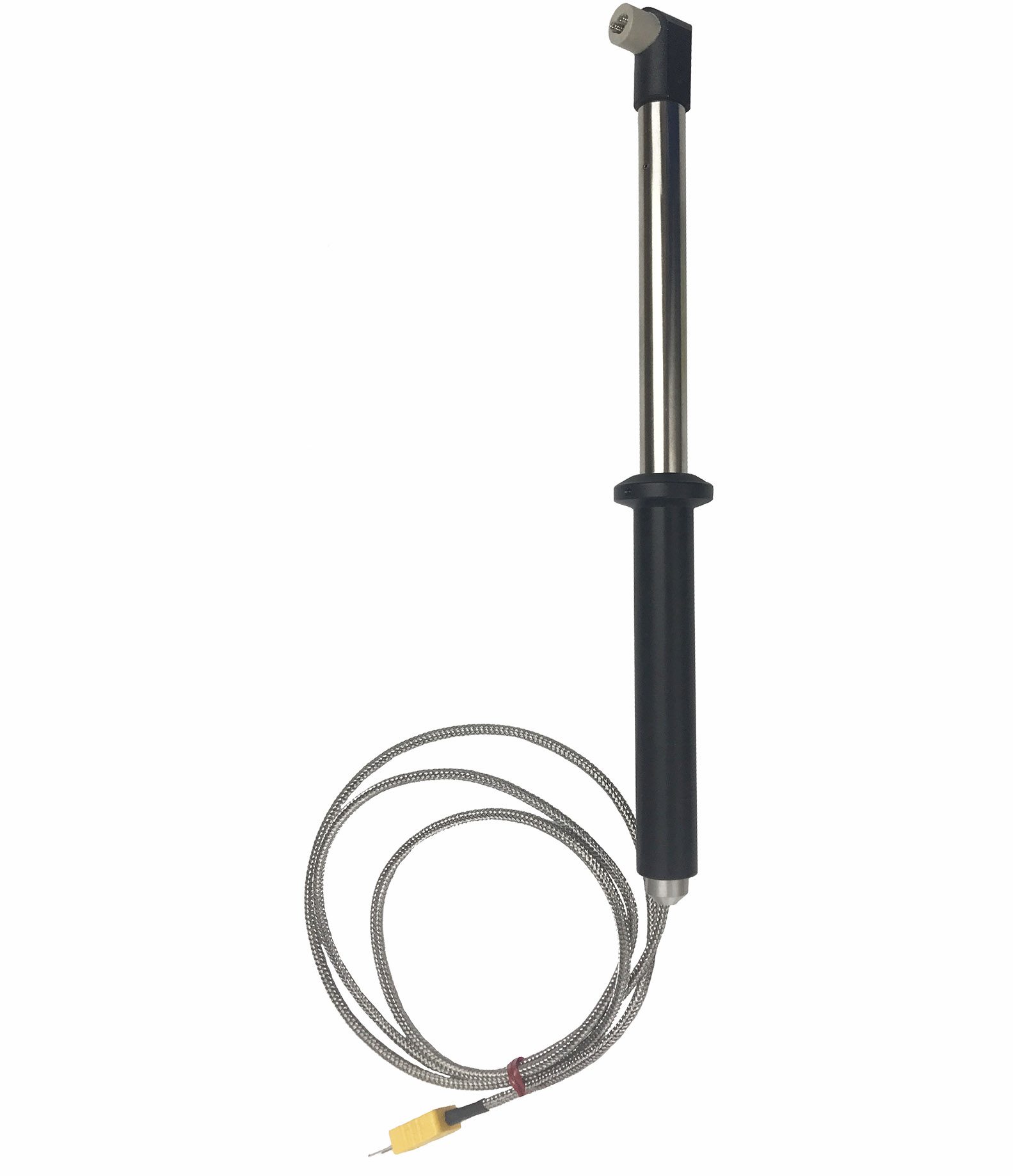

TC809R is a Type K thermocouple heavy duty surface probe with a 90° spring loaded miniature Z-tip, protected by ceramic housing. Available with 5 inch or 12 inch shank.
Includes braided stainless steel extension cable, 4 feet long.
Thermocouple Type K Heavy Duty Surface Probe with 90° Tip
Specifications
| Style | Surface |
|---|---|
| Shank Length | 5 inches. |
| Shank Diameter | 1/2 inch |
| Shank Material | Stainless Steel |
| Sensor | Type K Thermocouple |
| Available Models | TC809R: 5 inch shank |
| Handle | Yes |
| For Use With | Ingots, furnaces, kilns, molds and platens |
| Temperature Limit | 1200°F |
| Response Time | 3 second response measured on clean hot plate |
| Connector | Type K ANSI mini-connector plug |
