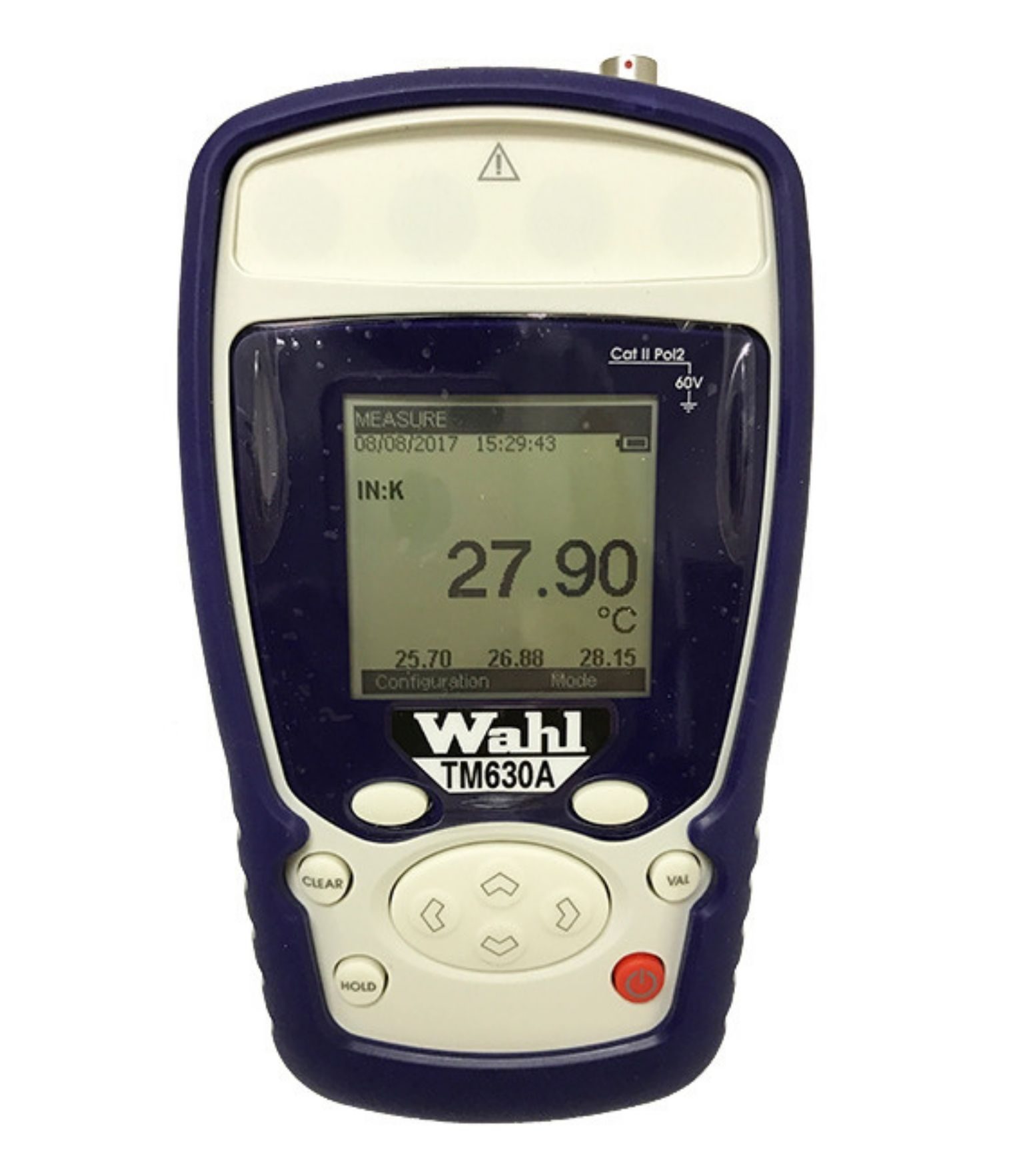

TM630A Pocket Thermocouple & RTD Thermometer

SPEC SHEET

MANUAL

SKU: TM630A Categories: , ,

Description

Wahl TM630A Series Pocket Thermometers are compatible with both RTD & Thermocouple probes for maximum measuring flexibility.  Featuring 0.02% Accuracy and measure in both Thermocouples & RTDs. Resolution is programmable for better reading by user with up to 1mΩ or 1μV.  Rugged IP54 construction is ideal for on-site use as a metrology or control tool. Automatic detection determines if sensor is 2, 3, or 4 wire RTD.

This model includes advanced features, including calibrated sensors (creating a database to design curves for sensors after calibration in relation to the corrections shown on a calibration report), scaling (for correction of probe errors), and data recording (manually, on event, or automatically.)

This meter is compatible with our RTD probes with part numbers ending with TMA and our thermocouple probes with part numbers beginning with TC.

Specifications

Accuracy

0.02% of reading
RTD Accuracy is for a 4 wire connection
Temperature Coefficient

15 ppm / °C in thermocouples
10 ppm / °C in RTDs
RTD Connection

Lemo 4-pin connector
Thermocouple Connector

Mini compensated connector
Compatible Thermocouple Types

K, T, J, E, R, S, B, U, L, C, N, Platinum, Mo, NiMo/NiCo
Display

Graphical LCD with adjustable contrast and backlight.
Display in °C, °F, mV and Ohms
Display Resolution

Three user selectable resolutions, up to 3 decimal places: High, Middle or Low resolution.
Languages

English, Spanish, French, German, Italian
Date and Time

Continuously displayed
CJC Accuracy

±0.3°C
Hold

Freezes the display
Statistics

Maximum, Average, and Minimum are displayed. Reset function allows re-calculating of the values.
Filter

A filter can be applied to avoid fluctuation of the value.
Warranty

One year warranty covers defects in materials and workmanship
Data

Recording and onscreen analysis
Note

Specifications are at 23°C ± 5°C, between 45% and 75% relative humidity.
Power Supply

Four AA size batteries
IP Rating

IP 54 according to EN 60529
Estimated Battery Life

40 hours
Electrical Security

EN61010
Electromagnetic Capability

EN61326
Dimensions

6.18 in x 3.35 in x 1.77 in (157mm x 85mm x 45mm)
Weight

10.79 ounces (306 grams)
Included Accessories

Protective Boot, Four AA batteries, and wrist strap.
Nominal Operating Conditions

-10°C up to +50°C, Relative Humidity: 20% up to 80% non-condensing
Maximum Operating Conditions

-10°C up to +55°C, Relative Humidity: 10% up to 80% (70% at 55°C)
Maximum Storage Temperature

-30°C up to +60°C (without batteries)
